Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic

Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic

  • High Light

    Pharmaceutical Softgel Encapsulation Machine

    ,

    7r/min Soft Gelatin Encapsulation Machine

  • Name
    Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic
  • Roller Die Rated Speed
    0~7r/min
  • Roller Die Size
    72*110mm
  • Single Piston Feeding Volume
    0~0.8ml
  • Power Supply
    380V 50Hz
  • Total Power
    6.6kw
  • Noise
    <75dBA
  • Dimension
    1500*550*1700mm
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-110RJ-A
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    50-60 Days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    20 Set per month

Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic



Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic



Main Technical Data of Encapsulation Machine:



ITEM/MODEL SED-110RJ-A
Roller die rated speed

0~7r/min

Roller die size 72*110mm
Single piston feeding volume 0~0.8ml
Total power 6.6kw
Dimension 1500*550*1700mm
Net weight 700kg



Description of Encapsulation Machine:



Soft gel encapsulation machine can quantificational inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of soft gel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to



oral, hard to oxygenation, easy to store and take, the soft gel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more



manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.
This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.



Feature of Encapsulation Machine:



1. Strong product capacity, it can produce 5-9 million pieces per month (No.8 oval shape, 10hours/day, and 30days/month).



2. Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%.



3. Capsule package rate is up to 98%.



4. The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.



5. Equipment adopts food conveyor belt authorized , without poison and inhibitor and easy to clean.

6. Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.



7. Advanced process and assembly techniques make the complete appliance quality stabilization, high working rate, and good shape pill.

8. Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.


9. The liquid level in the gelatin box is fixed automatically in the constant position and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.



10. The power of main motor is 1.5KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 185 model for example).



11. Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.

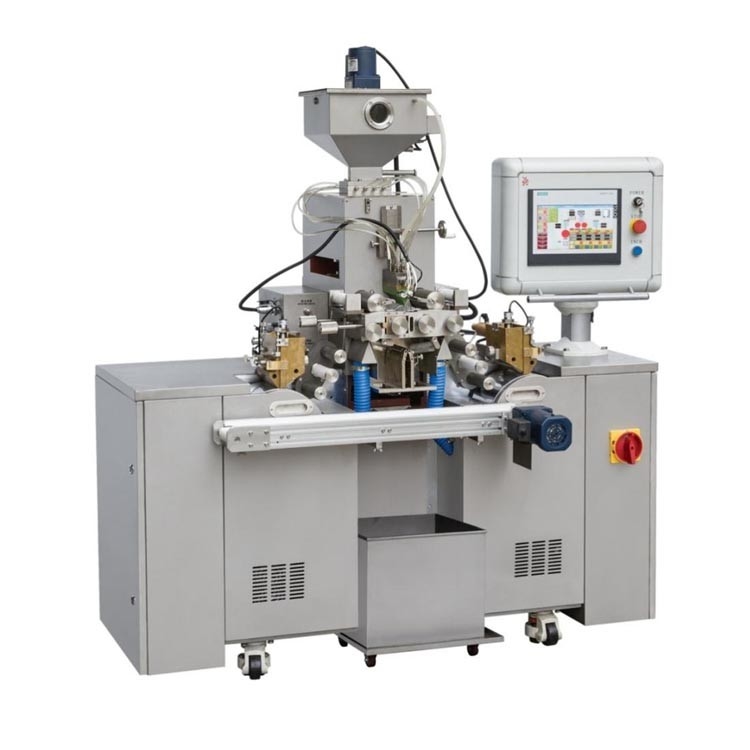

Product Show of Encapsulation Machine



Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic 0



Application of Encapsulation Machine



Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic 1
Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic 2Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic 3Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic 4Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic 5Pharmaceutical Soft Gelatin Capsule Encapsulation Machine Fully Automatic 6
