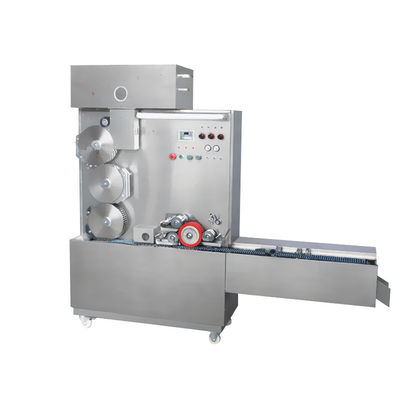

High-speed Two-color Capsule Printing Machine with 100,000 capsules/hour Capacity for Pharmaceutical Industry

Large Image : High-speed Two-color Capsule Printing Machine with 100,000 capsules/hour Capacity for Pharmaceutical Industry

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-100000YZJ-X

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

High-speed Two-color Capsule Printing Machine with 100,000 capsules/hour Capacity for Pharmaceutical Industry

Description

Name:	High-speed Two-color Capsule Printer Pharmaceutical Capsule Printing Machine	Capacity:	≥100,000 Capsules/hour
Power:	0.25 Kw	Weight:	200kg
Machine Dimensions (L×W×H):	2300×530x1500 Mm	Material:	Stainless Steel
Key Word:	Capsule Printing Machine
Highlight:	Pharmaceutical Capsule Printing Machine , 40Pa Capsule Printing Machine , Duotone Register Pharmaceutical Machinery Equipment

High-speed Two-color Capsule Printer Pharmaceutical Capsule Printing Machine

Product Overview

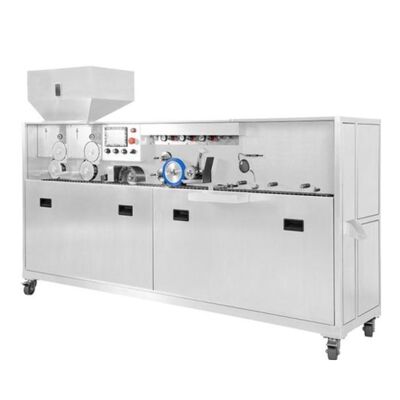

The SED-100000YZJ-X Directional Dual Color Capsule Printing Machine is a high-precision automated printing system designed for the pharmaceutical and nutraceutical industries. It delivers efficient and reliable dual-color printing on empty or filled capsules ranging in size from #00 to #5. The machine ensures precise alignment and individual printing of both the capsule cap and body, significantly enhancing product appearance and brand value.

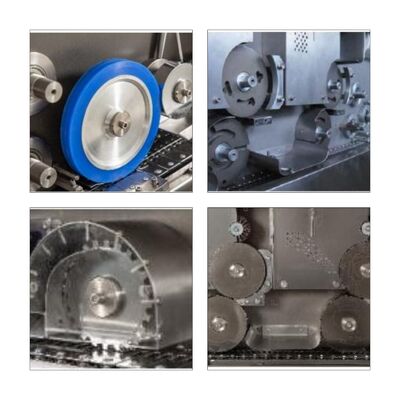

Key Features

High Speed Production: Output capacity over 100,000 capsules per hour
Directional Printing: Capsules are automatically aligned for precise printing
Double-Color Printing: Print two colors simultaneously with no color misalignment
Circular & Longitudinal Printing: Supports both printing modes in one machine
Online Rejection Device: Automatically rejects non-oriented capsules to ensure printing accuracy
Automatic Cleaning Wheel: Ensures uniform ink thickness and clear printing quality
Adjustable Steel Printing Wheel: Printing wheel angle can be freely adjusted for accurate double-color registration
High-Quality Rubber Wheel: Made of non-toxic silica gel with shore hardness < 23°, ensuring clear printing even at locking points

Technical Specifications

Item	Specification
Model	SED-100000YZJ-X
Application	00#~5# Empty Capsules / Filled Capsules
Production Capacity	≥ 100,000 pcs/hour
Power Supply	220V 50Hz / 110V 60Hz
Motor Power	0.25 kW
Compressed Air	1.8 m³/h @ 0.27 MPa
Dimensions	2300 × 530 × 1500 mm
Machine Weight	200 kg

Applications

This machine is capable of directional double-color printing on capsule caps for sizes 00# to 5#, ensuring accurate registration and high-quality printing. It can print text, logos, and patterns, enhancing the capsule’s appearance and upgrading the brand image. The machine is ideal for improving product promotion, strengthening corporate identity, and providing anti-counterfeiting features through customized printing.
