Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute

Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute

  • High Light

    240 Times/Minute Capsule Blister Packing Machine

    ,

    20kw Capsule Blister Packing Machine

  • Name
    Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute
  • Model
    SED-320GP
  • Cutting Speed
    240 Times/minute
  • Maximum Forming Depth
    12mm
  • Max Forming Area And Depth
    240×320(L×W)
  • Dimension
    4360×1350×1950mm
  • Weight
    3500kg
  • Total Power
    20kw 380V/ 50Hz
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-320GP
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    50-60 Days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    20 Set per month

Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute

Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute

Main Technical Data of Blister Packing Machine


Model
SED-320GP
Cutting Speed
240 times/minute
Maximum forming depth
12mm
Max forming area and depth
240×320(L×W)
PVC
<φ700
PTP
<φ250
Dimension
4360×1350×1950mm
Compressed air
0.5-0.7Mpa
weight
3500kg
total power
20kw 380V/ 50Hz


Product Description of Blister Packing Machine

The machine is new product which is improved based on customer's requirements. It's suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc.

It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.

Feature of Blister Packing Machine
1) Travel scope can be adjusted. Mould is located by located groove so that it's easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

2) The material is fed automatically. The mould and feeding equipment can be designed as user's requirements.

3) The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine's life.

4) The equipment of trace pressing, batch number printing and scrap-collecting can be chose.

5) Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.

6) Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).

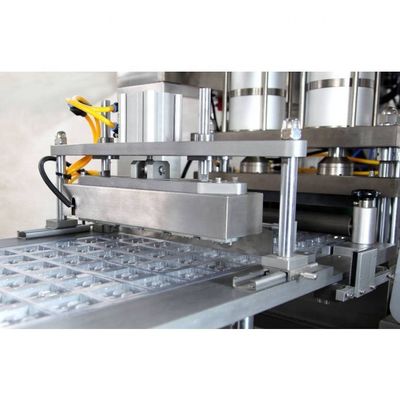

Product Show of Blister Packing Machine

Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute 0

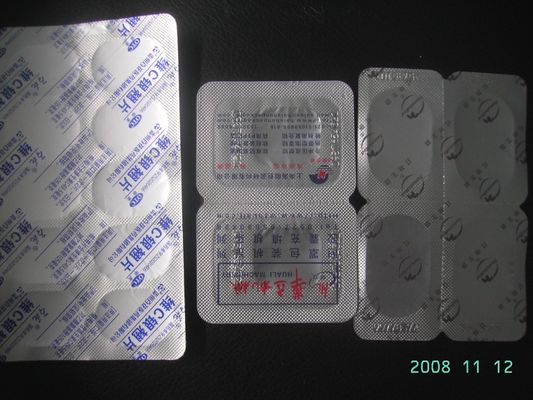

Application of Blister Packing Machine
Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute 1
Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute 2Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute 3Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute 4Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute 5Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute 6
