Product Details:
|
| Name: | 220W 120times/Min Small Sized Ribbon Coding Machine | Movable Characters: | Arabic Numerals, Both Chinese And English |
|---|---|---|---|
| Power Supply: | Single-phase 220W/220V | Size: | 280*180*420mm |
| Weight: | 10KG | Hot Printer Tape: | Maximum Width 35mm Standard Core Diameter P25.4mm |
| Material: | Stainless Steel | Key Word: | Small Sized Ribbon Coding Machine |
| Highlight: | small sized ribbon coding machine,120times/min ribbon coding machine,220W ribbon coding machine |
||
220W 120times/Min Small Sized Ribbon Coding Machine
Product Overview of Coding Machine
This machine is an electric ribbon coding device. It is suitable for all kinds of intermittent and continuous packaging machines, vertical or horizontal automatic packaging machines.
Product Parameters of Coding Machine
|
Speed
|
120 times/min (speed synchronization)
|
|
Movable characters
|
Arabic numerals, both Chinese and English
|
|
Hot printer tape
|
maximum width 35mm standard core diameter p25.4mm
|
|
Power supply
|
single-phase 220W/220V
|
|
Size
|
280*180*420mm
|
|
Weight
|
10KG
|
|
Printed area
|
Maximum single column: 4*35mm, about 15 movable characters
Double column maximum: 8*35mm, about 30 movable characters The three columns are the largest: 12*35mm, which can hold about 45 movable characters. |
Feature of Coding Machine
1.SED-241/DM automatic tracing ribbon hot typewriter is improved on the basis of SED-241/DM electric ribbon typewriter, and its application scope is wider.
2.Unique and ingenious film-wound structure solves the synchronization error of fast coding.
3.The typewriter has its own motor, synchronous signal trigger control, small size, easy installation, easy printing, clear printing and no fading.
4.The introduction of international advanced hot typing technology, the use of hot printing ribbon instead of ink printing, can print clear characters on soft packaging materials (except metal materials), easy to use, easy to maintain.

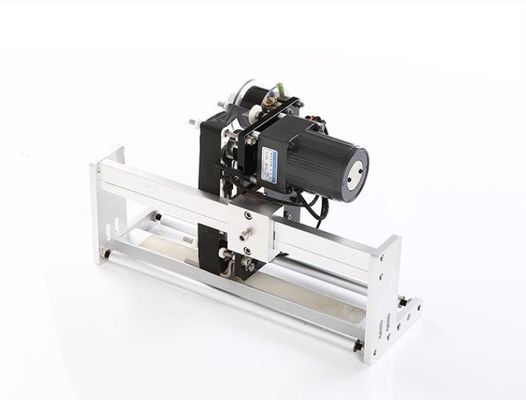

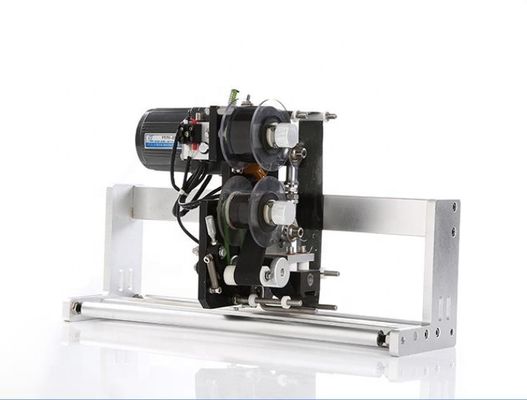

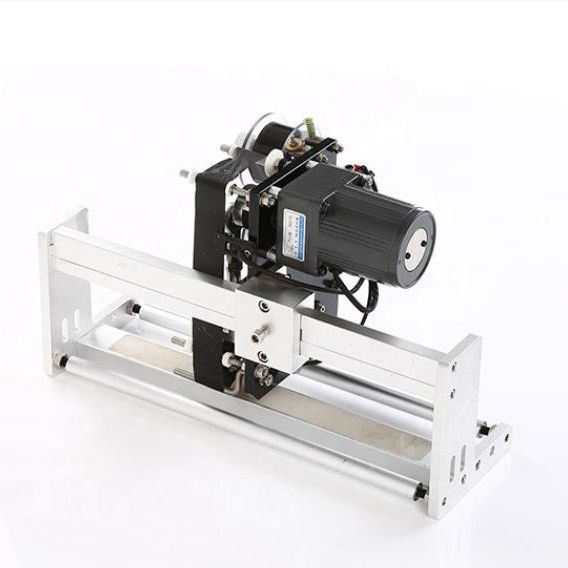

Show of Coding Machine
Application of Coding Machine
Widely used in food and machine to print date, weight and production number on plastic and paper bags.
