0.95kw Manufacturing Plant Capsule Semi Automatic Auger Powder Filling Machine

0.95kw Manufacturing Plant Capsule Semi Automatic Auger Powder Filling Machine

  • High Light

    0.95kw auger capsule filling machine

    ,

    semi automatic auger powder filling machine

    ,

    capsule semi automatic auger powder filling machine

  • Name
    0.95kw Manufacturing Plant Capsule Semi Automatic Auger Powder Filling Machine
  • Metering Mode
    Auger Rotation Filling Traced By Weighing Feedback
  • Hopper
    Level Split Hopper 25L
  • Display
    PLC ,touch Screen Control
  • Filling Weight
    1-500g (Change Auger)
  • Filling Accuracy
    ≤100g, With <±2%; 100-500g, With <±1%;
  • Filling Rate
    15 – 40 Bpm(depending On The Material And Worker’s Operation)
  • Power Supply
    3P AC208-415V 50/60Hz
  • Total Power
    0.95KW
  • Total Weight
    130kg
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-BX-21

0.95kw Manufacturing Plant Capsule Semi Automatic Auger Powder Filling Machine

0.95kw Manufacturing Plant Capsule Semi Automatic Auger Powder Filling Machine



Model
BYD-BX-21
Metering Mode
Auger rotation filling traced by weighing feedback
Hopper
Level split hopper 25L
Display
PLC ,touch screen control
Filling Weight
1-500g (Change auger)
Filling Accuracy
≤100g, with <±2%; 100-500g, with <±1%;
Filling Rate
15 – 40 bpm(depending on the material and worker’s operation)
Power Supply
3P AC208-415V 50/60Hz
Total Power
0.95KW
Total Weight
130kg
Overall Dimensions
870*820*1850mm

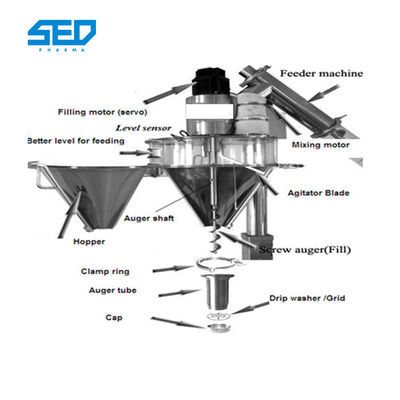

This filler is for powder and small granular material dosing such as pharmaceutical powder, instant drink powder, milk powder, spice, slat, white sugar, chemical powder etc. Filling into pre-made bag or solid container with high speed and accuracy ,can separately or work together with other packer.

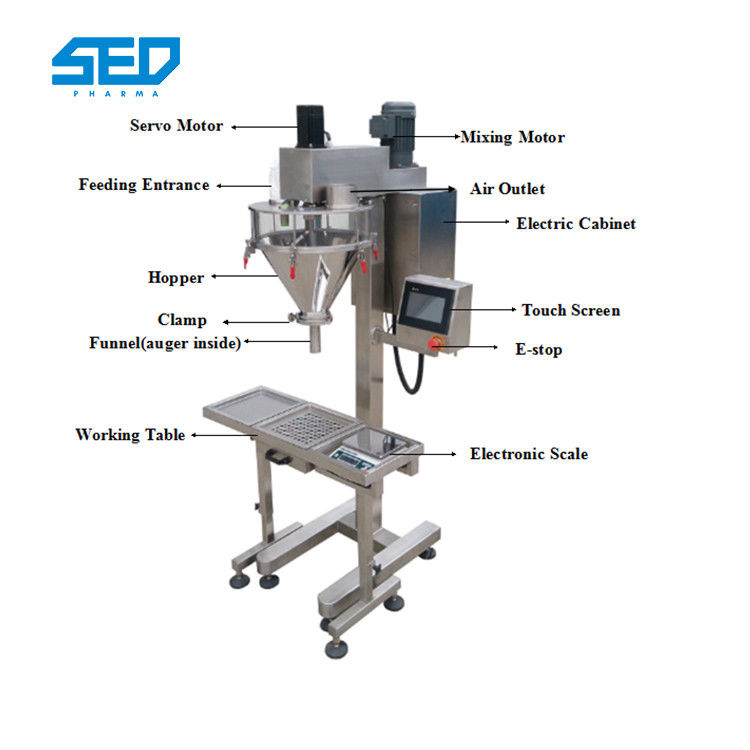

Feature


1. Standard SS304 frame , meet GMP standard

2. servo motor and driver control for high accuracy dosing

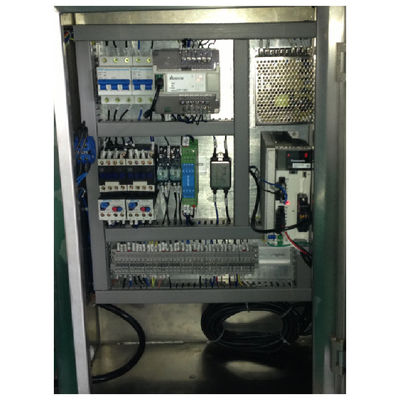

3. PLC+ Touch screen control, English version interface

4. Electric scale connect with touch screen for weight feedback( Min 0.01accuracy display), the system can adjust at the next filling when detect there have deviation on the first filling

5. Level sensor fixed on the top hopper to control feeding machine work automatically

6. Feeding entrance and air vent size same , so can be changeable.

7. Save the parameter of each product to later use, to save 8 sets at most

8. Changing the auger toolings, it fits for lots of material ranging from fine-powder to granule.

9. Foot pedal control discharging or by the delay time set by the touch screen ,all simple opearate

10. Hopper easy load and unload without tools , inner wall polished,easy cleaning

11. The desktop model and vertical model for option
