Product Details:
|
| Name: | 137mm Lowe Energy Vibration Capsule GMP Tablet Deduster Machine | Max Rotating Speed(Rotary/min):: | 60 |
|---|---|---|---|
| De-dusting Hole Diameter:: | 3 | Motor Power (w):: | 60 |
| Rated Voltage (v):: | 220 | Frequency ( Hz ):: | 50 |
| Compressed Air Pressure(kg):: | 4 | Net Weight(kg):: | 30 |
| Material: | Stainless Steel | Key Word: | Tablet Deduster Machine |
| High Light: | Lowe Energy Vibration capsule deduster,GMP Tablet Deduster Machine,137mm Tablet Deduster Machine |
||
137mm Lowe Energy Vibration Capsule GMP Tablet Deduster Machine
Product Description of Tablet Deduster Machine
Principle of the structure vibrated griddle: use upright motor as the source of vibration, equipped ecc-entricity hammer on the both sides of the top and the bottom, change circumrotate to level, upright and slope movement, then pass these three movement to the surface of the griddle.
Ad-just the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface griddle.
Detailed Parameters of Tablet Deduster Machine
|
De-dusting chamber diameter (mm)
|
137
|
|
Max Rotating Speed(Rotary/min):
|
60
|
|
De-dusting hole diameter:
|
3
|
|
Motor power (w):
|
60
|
|
Rated voltage (v):
|
220
|
|
Frequency ( hz ):
|
50
|
|
Compressed air pressure(kg):
|
4
|
|
Net weight(kg):
|
30
|
Feature of Tablet Deduster Machine
SP series screening is a new generation products and special structure design and adopts the principle of electromagnetic vibrate, the advantage of small floor area, high efficiency, Lowe energy principle of electromagnetic vibrate, the advantage of small floor area, high efficiency, lower energy consumption and etc. meet with GMP requirements.

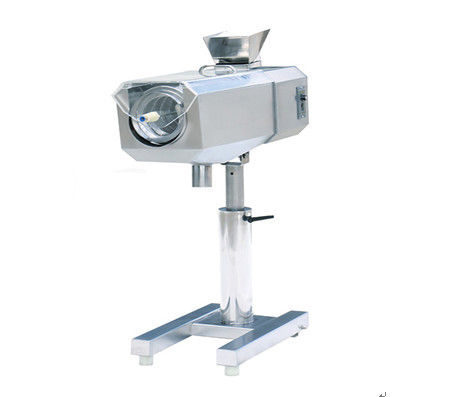

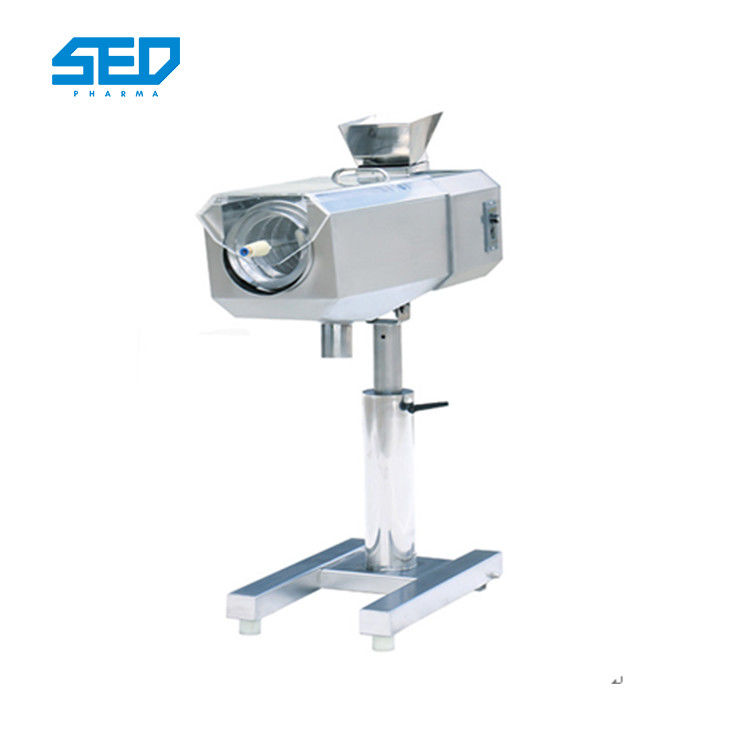

Product Show of Tablet Deduster Machine
Application of Tablet Deduster Machine
This is an automatic continuous working tablet dust collector, which can be used with various types of presses and is the main auxiliary equipment of the press. The main function is to remove powder from the tablet. Connect it with a vacuum cleaner and suck it out from the powder suction port. The machine is made of stainless steel, which is easy to maintain, corrosion-resistant and beautiful in appearance.
