Product Details:
|
| Name: | Four Side Sealing Packing 0.7Mpa Pharmaceutical Machinery Equipment | Capacity: | 60-300 Bags/min（Decided By Packing Material） |
|---|---|---|---|
| Max Packing Film Roll Size: | φ400mm | Packing Film Width: | 350mm |
| Packing Size: | L 70-450mm, W 80-175mm, H 1-5mm | Air Pressure: | 0.5~0.7Mpa |
| Rated Power: | AC380V 50Hz | Total Power: | 20KW |
| Weight: | 2750kg | Dimension: | L×W×H 5600×1730×1500㎜ |
| Material: | Stainless Steel | Key Word: | Four Side Sealing Packing |
| Highlight: | 0.7Mpa Pharmaceutical Machinery Equipment,20KW Pharmaceutical Machinery Equipment,400mm Pharmaceutical Machinery Equipment |
||

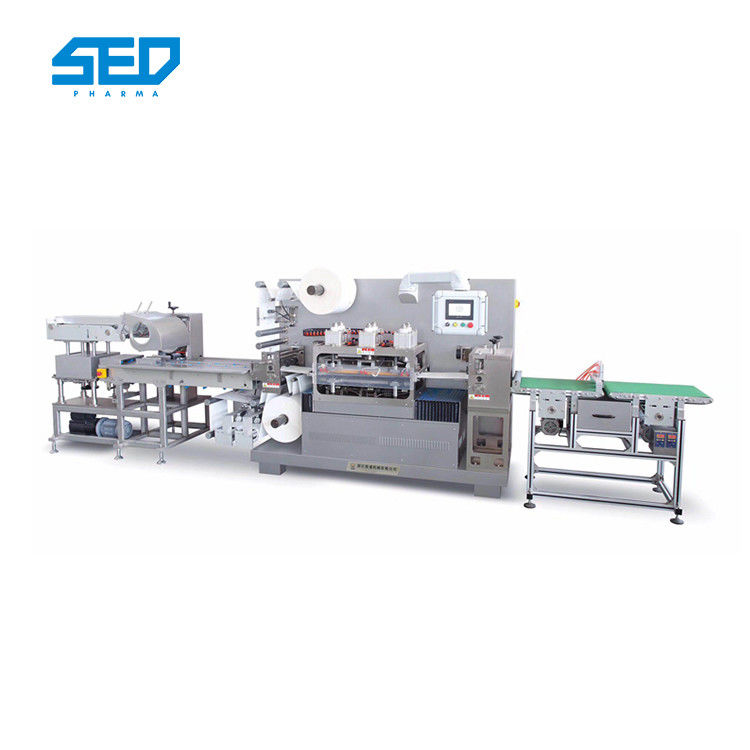

Four Side Sealing Packing 0.7Mpa Pharmaceutical Machinery Equipment
Product Overview of Packing Machine
This machine is a four-sided packaging machine developed by our company's scientific researchers, specially designed and developed for automatic packaging in plaster industry.
It is suitable for packing medical plaster, gauze sheet and other sheet materials.Four servo motors are driven by PLC programmable controller, which makes the whole machine run programmatically.
The machineinclude servo traction, double row feeding, batch number printing, reciprocating heat seal, vertical and horizontal cutting and product conveying mechanism. It has superior performance and convenient operation.
Product Parameters of Packing Machine
|
name
|
Four Side Sealing Packing 0.7Mpa Pharmaceutical Machinery Equipment
|
|
Capacity
|
60-300 bags/min(Decided by packing material)
|
|
Max packing film roll size
|
φ400mm
|
|
Packing film width
|
350mm
|
|
Packing size
|
L 70-450mm, W 80-175mm, H 1-5mm
|
|
Compressed air
|
0.3m³/mi
|
|
Air pressure
|
0.5~0.7Mpa
|
|
Rated power
|
AC380V 50Hz
|
|
Total power
|
20KW
|
|
Weight
|
2750kg
|
|
Dimension
|
L×W×H 5600×1730×1500㎜
|
Feature of Packing Machine
1. PLC programmable control, servo motor drive, so that the operation of the whole machine programmed.
2. Touch screen display, main machine speed, bag length length, cutting knife, heat sealing and feeding time, output will be displayed on the screen.
3. Graphic and text alignment: Imported photoelectric eye tracking color label, accurate graphic and text alignment.
4. Automatic temperature control. Two groups of temperature controllers are used to automatically control the temperature of the heat sealing parts, so as to improve the sealing quality.
Show of Packing Machine
Application of Packing Machine
The four-side sealing mask packaging machine is suitable for paper-plastic bag packaging of various disposable masks, medical masks and other items.
