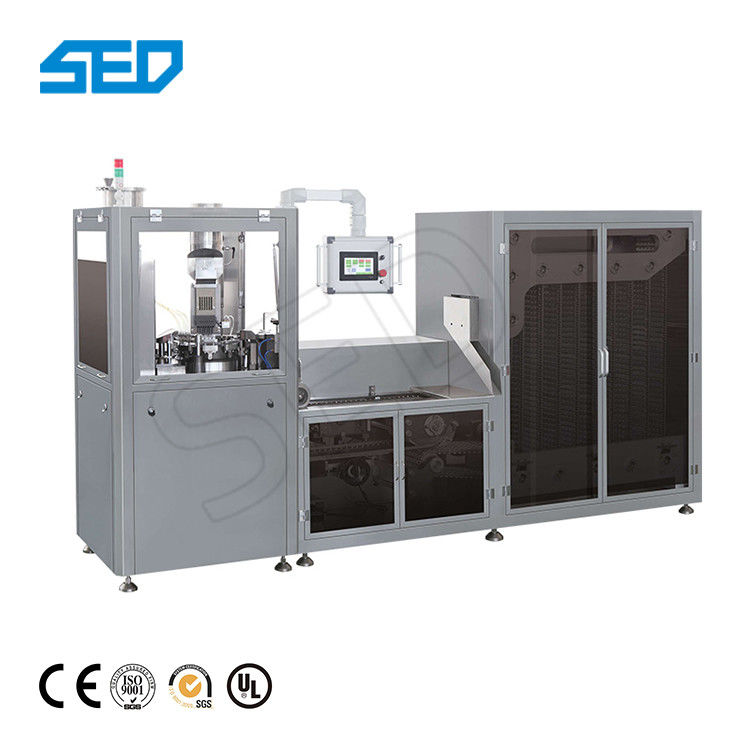

Medical Fish Oil Automatic Liquid Capsule Filling Machine

Medical Fish Oil Automatic Liquid Capsule Filling Machine



Product Parameters of Liquid Capsule Filling Machine

Equipment Model	SED-300YJ-I	SED-450YJ-I	SED-600YJ-I
Machine weight	850kg

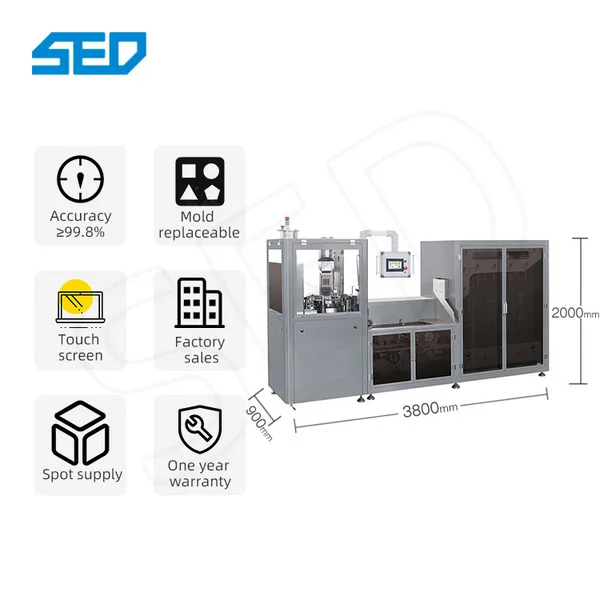

Overall dimension	1090×870×2100 mm
Motor power	3.1kw + 2.2kw (dust collector)
Power supply	3 phase, AC 380V, 50Hz
Max. Output	18,000 cap/h	27,000 cap/h	36,000 cap/h
Segment hole	4 hole	6 hole	8 hole
Capsule size	00#～2#
Capsule using rate	≥ 99.5%
Noise index	≤ 75dBA
Dosage difference	≤ ±3% (test with peanut oil 400mg filling)
Vacuum degree	-0.02～-0.06MPa
Working temperature	21℃ ± 3℃
Working relative humidity	40～55%
Product form	Oil based liquid, solution, and suspension
Control system	Stepless frequency conversion control, PLC control with touch-screen
Material	Spare part contact with medicine adopt superior S.S 304 & GMP compliable material
Criterion	Comply to GMP completely



Automatic hard-capsule liquid filling machine and sealing linkage line equipment are the first in-line equipment of our company based on our own multi-year capsule filling technology, self-developed design and production of hard capsule filling liquid and sealing. And exclusive proprietary intellectual property rights and a number of technical invention patents, the device can complete the filling of hard capsules (solution, suspension, microemulsion or hot solution) and sealing the capsule cap joint to make the capsule The contents are sealed in the process of packaging, transportation and use, which improves the stability and safety of the product. It can provide new modes of administration, improve the drug delivery problems of many drugs, and fill the domestic and foreign pharmaceutical and health care. The blank of hard capsule filling liquid and sealing technology in the product industry is also the gospel of many pharmaceutical companies and health care products factories for the development of some (highly active drugs, poorly soluble drugs) preparation products.

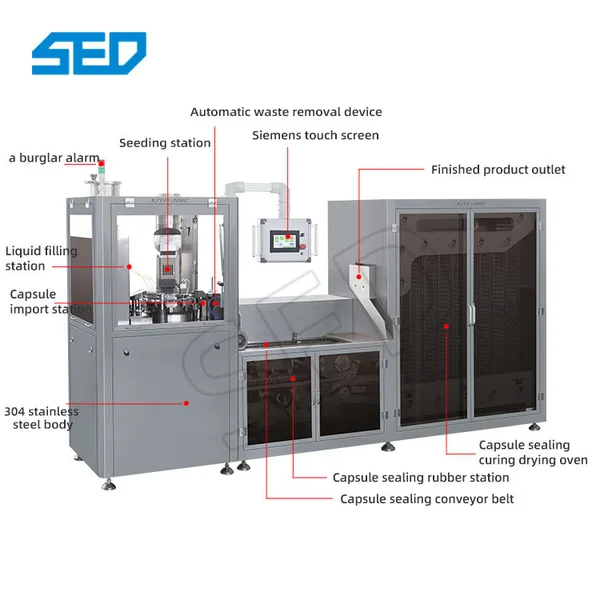

Product performance, features:

1. The equipment adopts man-machine interface control system, which automatically lacks capsules and lacks material alarm.

2. The capsule feeding machine has a vacuum positioning and separating mechanism, so that the probability of the capsule is over 99%. The fiber is automatically detected, and the capsule is missing in the upper and lower mold holes.

3. High-precision ceramic pump and servo motor dosing system are adopted to control the difference of the loading amount to about ±2%, and the dosage is accurate.

4. The sealing mechanism adopts the servo motor lifting device, which can be used to jog and fine-tune the rubber wheel to achieve the best effect of the sealing layer.

5. The sealing liquid tank is designed as a sealing structure, and is equipped with a heating and heat preservation system to ensure the viscosity of the glue liquid and effectively extend the glue liquid period.

6. The finished dry curing mold adopts hanging type and free rotation structure, which effectively improves the disassembly and unloading cleaning time.
