Product Details:
|
| Name: | Static Square Vacuum Drying Machine For Medicine In Pharmaceutical Industry | Shelf Working Pressure Mpa: | ≤0.784 |
|---|---|---|---|
| Shelf Working Temp. ℃: | 35-150 | Vacuum Degree Mpa: | -0.1 |
| Material: | Stainless Steel | Key Word: | Vacuum Drying Machine |
| High Light: | dryers used in pharmaceutical industry,fluid bed dryer granulator |
||
Static Square Vacuum Drying Machine For Medicine In Pharmaceutical Industry
Product Description of Vacuum Drying Machine
Vacuum shelf tray dryer is a most often used static chamber dryer under vacuum condition. Inside the drying chamber, trays loaded with wet material are placed on top of each other in a drying shelf.
In drying pocess, heat medium, such as steam, hot water or thermal oil, is connected to the drying shelf which transfers heat to wet material. Under vacuum condition, boiling point of moisture is much lower. So the moisture can be evaporated under low temperature.
The vacuum pump constantly sucks out the evaporated moisture to speed the drying process. Vacuum pump, tubular condenser and buffer tank are equipped to recover the evaporated moisture.
Product Parameters of Vacuum Drying Machine
| Model | YZG-600 | FZG-10 | FZG-15 | FZG-20 |
| Inner dimension mm | Φ600x976 | 1500X1060X1220 | 1500X1400X1220 | 1500X1800X1220 |
| Outer dimension mm | 1135X810X1020 | 1513X1924X1720 | 1513X1924X2060 | 1513X1924X2500 |
| Shelf layer | 4 | 5 | 8 | 12 |
| Shelf space mm | 81 | 122 | 122 | 122 |
| Tray size mm | 310X600X45 | 640X460X45 | 640X460X45 | 640X460X45 |
| Tray quantity | 4 | 20 | 32 | 48 |
| Shelf working pressure Mpa | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| Shelf working temp. ℃ | 35-150 | 35-150 | 35-150 | 35-150 |
| Vacuum degree Mpa | -0.1 | -0.1 | -0.1 | -0.1 |
| Water evaporation rate under -0.1 Mpa and 110 ℃ kg/m2. hr | 7.2 | 7.2 | 7.2 | 7.2 |
| Vacuum pump with condenser | 2X-15A/2KW | 2X-70A/5.5KW | 2X-70A/5.5KW | 2X-90A/7.5KW |
| Vacuum pump without condenser | SK-0.8/2.2KW | SK-3/5.5KW | SK-6/11KW | SK-6/11KW |
| Drying chamber weight kg | 250 | 1400 | 2100 | 3200 |
main features of Vacuum Drying Machine
1) Flexibility in heat medium: Heat mediums can be steam, hot water or thermal oil to obtain different temperature according to special drying requirements.
2) Uniform drying: Four exhaust vents are equipped to make sure the evaporated moisture can be sucked out immediately.
3) Energy saving: The boiling point of moisture is much lower under vacuum. Low drying temperature can reach high evaporation rate.
4) GMP standard: Drying chamber is fully welded without dead corners to meet GMP standard.

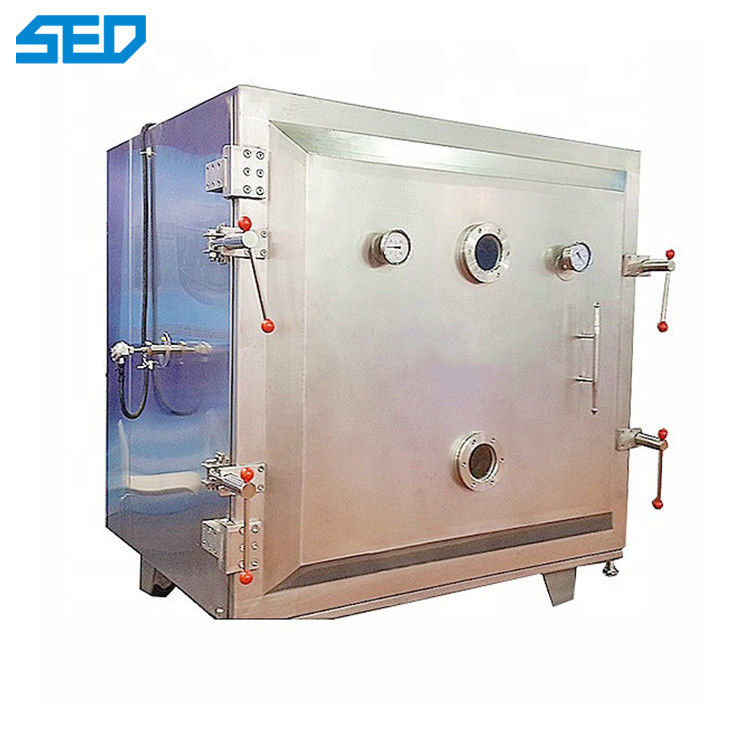

Products Show of Vacuum Drying Machine
Application of Vacuum Drying Machine
