Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine

Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine
Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine

Large Image :  Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-250P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine

Description
Name: Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine Inlet Temperature: 140-350 Self-control
Powder Recovery (%): ≥95 Heat Source: Electricity
Material: Stainless Steel Key Word: Powder Spray Drying Machine
High Light:

dryers used in pharmaceutical industry

,

fluid bed dryer granulator

Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine



Product description of Spray Dryer



High Speed Spray drying Machine is a technology most widely used in the liquid technology shaping and in the drying industry.



The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.



Atomizer is the most important accessory in spray drying machine, it is used for changing LIQUID status into SPRAY status at a high speed rotation motions, usually can reach 18000~25000 rpm.





Main Parameter of Spray Dryer

Item/Model SED5 SED25 SED50 SED150 SED200-2000
Inlet temperature 140-350 self-control
Outlet temperature 80-90
Water evaporation (kg/h) 5 25 50 150 200-2000
Centrifugal spray head transmission form Compressed air transmission Mechanical transmission
Maxi. speed(r.p.m) 25000 18000 18000 15000 8000-15000
Spray disc diameter(mm) 50 120 120 150 180-240
Heat source electricity Steam+ electricity Vapor + electricity, fuel, gas, hot blast stove
Electric heating maximum power(kw) 9 36 72 99
Overall dimensions
(L * W* H) (m)
1.8×0.93×2.2 3×2.7×4.26 3.5×3.5×4.8 5.5×4×7 Determined according to the actual situation
Powder recovery (%) ≥95







Main Features of Spray Dryer



The drying speed is high when the material liquid is atomized , the surface area of the material will increase greatly .In the hot-air flow,95%-98% of water can be evaporated within only seconds.More suitable for drying the heat sensitive materials.Spray Drying Machine final products own the advantages of good uniformity, flow ability & solubility. Also high in purity and good in quality.



The production procedures are simple and the operation and control are easy .The liquid with moisture contents of 40-60% (for special materials, the contents might be up to 90 %.) can be dried into the powder or particle products once a time.



After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity .The product particle diameters, looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and management.



Application advantages



1. The drying speed is fast, and the surface of the material liquid is greatly increased after atomization. In the hot air flow, 95%-98% of the water can be evaporated instantly, and it only takes ten to ten seconds to complete the drying step. Suitable for drying heat-sensitive materials;


2. The products obtained by drying are spherical particles with uniform particles, good fluidity, good solubility, high product purity and good quality;


3. Wide range of applications, users can choose to use hot air drying and cold air granulation according to the characteristics of the material, which has strong adaptability to the material.


4. The operation is simple and stable, the control is convenient, and it is easy to realize automatic operation.

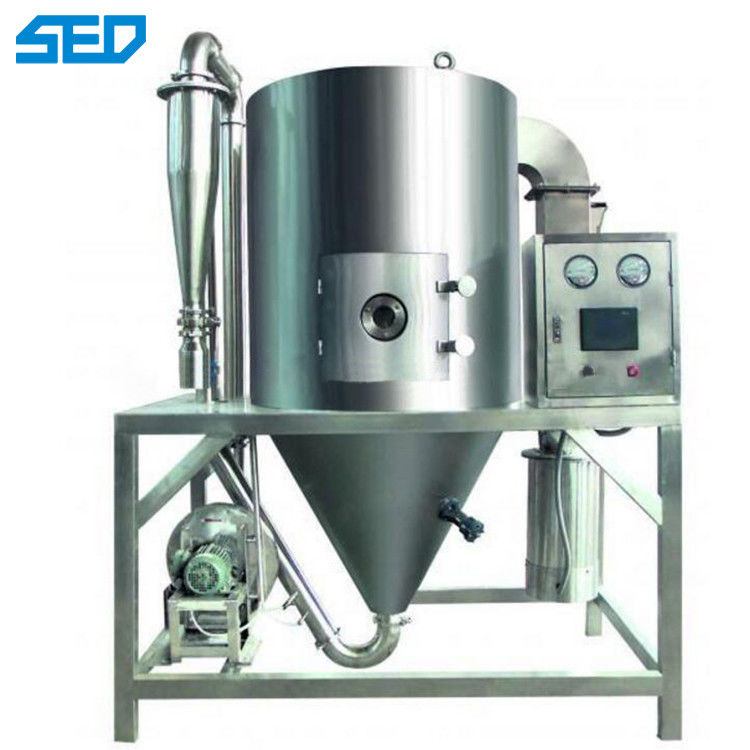

Product Show of Spray Dryer

Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 0Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 1Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 2Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 3




Application of Spray Dryer



Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 4

Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 5Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 6Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 7Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 8Pharmaceutical Dryers Centrifugal Industrial Powder Spray Drying Machine 9
