Product Details:
|
| Name: | Atomizer Centrifugal Spray Pharmaceutical Dryers Liquid Sprying Drying Machine | Inlet Temperature(°C): | 140-350 Automatically Controlled |
|---|---|---|---|
| Outlet Temperature(°C): | 80-90 | Heat Supply: | Electricity |
| Material: | Stainless Steel | Key Word: | Liquid Sprying Drying Machine |
| High Light: | dryers used in pharmaceutical industry,fluid bed dryer granulator |
||
Atomizer Centrifugal Spray Pharmaceutical Dryers Liquid Sprying Drying Machine
Product Description of Sprying Drying Machine
The spray drying is the technology widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing the powder, particle or block solid products from the materials, such as: solution, emulsion, soliquoid and pumpable paste states.
For this reason, when the particle size and distribution of the final products, their residual water contents, the stacking density and the particle shape must meet the precision standard, the spray drying is one of the most desired technologies.
Product Parameters of Sprying Drying Machine
| Type Parameter Item | SED | |||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 | |
| Inlet temperature(°C) | 140-350 automatically controlled | |||||
| Outlet temperature(°C) | 80-90 | |||||
| Max.water evaporation capacity(kg/h) | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| Way of atomizing | Compressed air transmission | Mechanical transmission | ||||
| Rotation speed(rpm) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| Diameter of atomizing tray(mm) | 50 | 100 | 120 | 140 | 150 | 180-340 |
| Heat supply | Electricity | Electricity+ steam | Electricity+steam, fuel oil and gas | Settled by users themselves | ||
| Max Electric heating power(kw) | 9 | 36 | 63 | 81 | 99 | |
| L*W*H(m) | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | Decided according to be concrete conditions |
| Dried powder restoring rate(%) | ≥95 | |||||
Advantages of Sprying Drying Machine
At a high speed of drying, after the spraying of the liquid material , the surface area of the material will be increased greatly. In the hot-air flow, 95%-98%of water can be evaporated at a moment.
The time of completing the drying needs only several seconds. Products with good uniformity, mobility and solubility, high purity, good quality. The production procedures are simple and the operation and control are easy.
The liquid with the moisture contents 40-60%(for special materials, The contents may reach 90%).can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity.
The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.

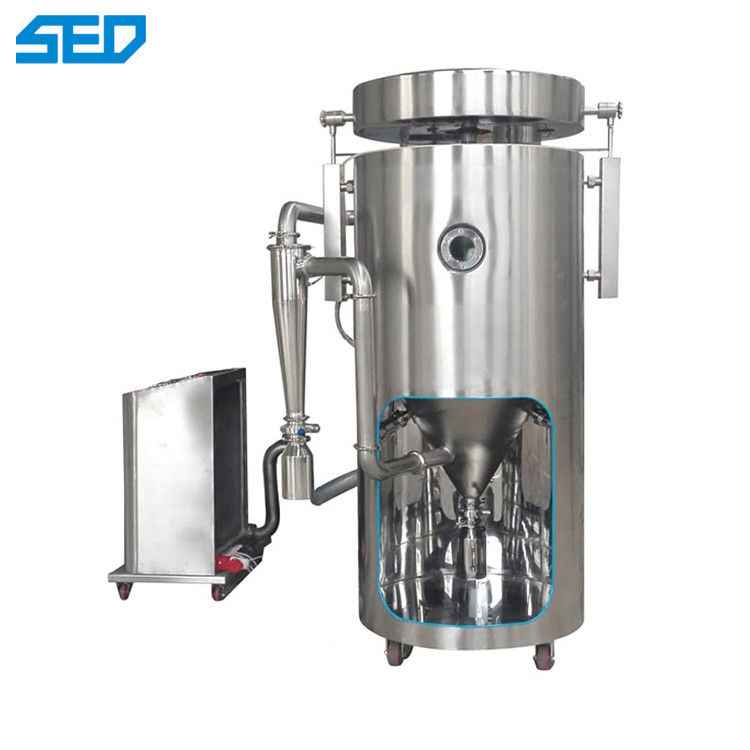

Products Show of Sprying Drying Machine
