Product Details:
|
Name: | Automatic Plastic Ampoule Liquid Filling And Sealing Machine Pharmaceutical Machinery Equipment | Cutting Speed: | 45-100 Pcs/min |
---|---|---|---|
Packing Material: | PET/PE PVC/PE (0.2-0.4) ×240mm | Filling Volume: | 1-50ml/piece |
Material: | Stainless Steel | Key Word: | Ampoule Filling Sealing Machine |
High Light: | machinery for pharmaceutical industry,equipment for pharmaceutical manufacturing |
Automatic Plastic Ampoule liquid Filling and Sealing Machine Pharmaceutical Machinery Equipment
Product Overview of Ampoule Filling Sealing Machine
This machine is a kind of compact type liquid filling and sealing machine, it is suitable for small batch filling for different product and widely used for filling oral liquid, perfume, liquid , essential oil, olive oil, health care product etc in pharmaceutical, herbal, pesticide, cosmetic, food and supplement area.
Product Parameters of Ampoule Filling Sealing Machine
Item.No | SED-240SP-F |
Forming Depth(max) | 12mm |
Capacity |
45-100 pcs/min (15-25 cuttings/min, according to the ampoule size) |
Filling Head | 5 |
Packing Material | PET/PE PVC/PE (0.2-0.4) ×240mm |
Filling Volume | 1-50ml/piece |
Power | 8.5 kw |
Voltage | 220V/380V 50/60HZ 3phase |
Weight | 1200kg |
Overall Dimension | 3200×850×1900mm |
Feature of Ampoule Filling Sealing Machine
1. The machine adopts PLC control and stepless altering frequency adjustment.
2. The machine can finish the following 6 working station automatically through the programmer, roller sheet release, PVC/PE forming, filling, press the batch number, back-end crop, slitting
3. The machine adopts the human-machine interface operation, operation is easy and simple
4. The filling head has no leakage, no foam and overflow.
5. The contact parts with the material adopt SUS316L, which completely confirms to the GMP standard.
6. The main pneumatic component and electric parts adopt well-known brand products.
7. Filling system adopts mechanical pump, measuring is precisely and the difference is small. We can also design different pump for different product with various kinds of flow-ability.
8. The machine can be connected with labeling machine to realize full production for filling sealing and labeling.

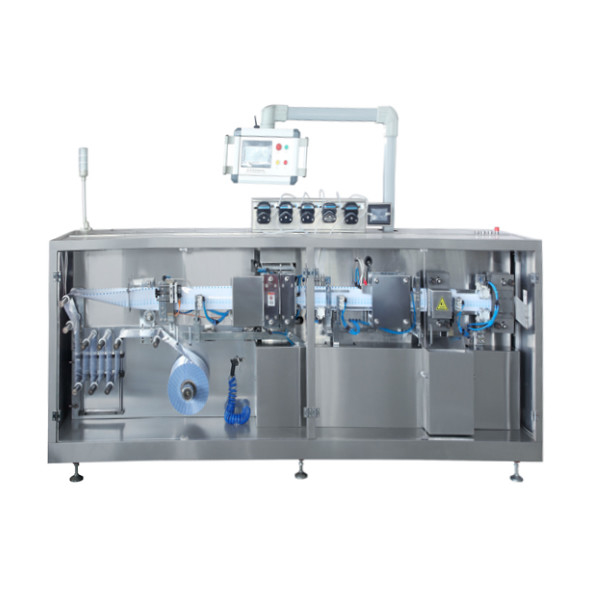

Show of Ampoule Filling Sealing Machine
Application of Ampoule Filling Sealing Machine
This machine is used for liquid product packaging, such as liquid medicine, syrup, drinking liquid; lotion, hair dye,
Shampoos, creams, essential oils; edible honey, ketchup, jam, chocolate cream, olive oil, soy sauce, garlic sauce; agricultural
Chemical pesticide liquid, chemical fertilizer liquid, plant liquid, etc.
