Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine

Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine
Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine

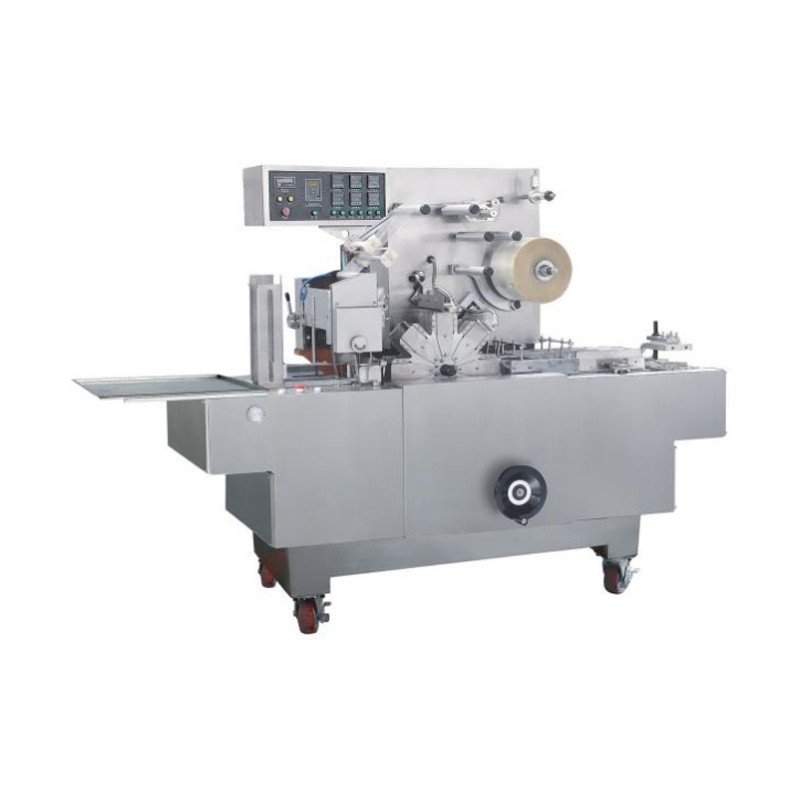

Large Image :  Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-250P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine

Description
Name: Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine Type: Cellophane Packaging Machine
Name1: Cello Wrapping Machine Name2: Automatic Cellophane Wrapping Machine
Machine Weight: About 400KG Dimension (L*W*H): 1700*1020*1200MM
Material: Stainless Steel Key Word: Cellophane Wrapping Machine
High Light:

machinery for pharmaceutical industry

,

equipment for pharmaceutical manufacturing

Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine



Product Overview of Cellophane Packing Machine



This Cosmetic Box Cellophane Packaging Machine's applicable material is cellophane and BOPP coating film, and this machine is general equipment to make 3d packing for different specifications carton or hard side body objects. Its regards mechanical linkage as the main body, adopts stepless frequency control of motor speed and automatic control electrical accessories.



The machine integrating machine, electricity and gas as a whole, has compact structure, beautiful performance, convenient operation and easily maintenance, small volume, light weight and high degree of automation, etc. advantages.



This machine is designed newly and developed on basis of absording the Abroad advanced technology which is suitable for wrapping automatically middle and small sized single box. And its package size is bigger than Model BT-2000B's.





Product  Parameters of Cellophane Packing Machine​

Film Width Max.250MM Max.320MM Max.350MM Max.400MM
Bag Length 65-280MM 65-330MM 65-330MM 150-400MM
Bag Width 30-110mm 50-150mm 50-160mm 50-180mm
Products High max.55mm max.55mm max.60mm max.65mm
Packing Speed 40-330bag/min 40-230bag/min 40-180bag/min 30-150bag/min
Power 220V 50/60HZ 2.4KW 220V 50/60HZ 2.6KW 220V 50/60HZ 2.6KW

220V 50/60HZ

2.8KW

Machine Size(mm) 3770x680x1420 3770x720x1420 4020x770x1420 4020x770x1420
Machine Weight 500kg 550kg 580kg 600kg







Feature of Cellophane Packing Machine



1. For Stable Performance: Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.



2.  For Easy Operation: Touch screen monitor, independant temperature PID controller,



3. For Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, date printer, etc.



4. The temperature controller adopts digital display temperature controller with built-in PID function. The knife sealing temperature is extremely sensitive and accurate and can be set at will. The sealing knife itself also has an automatic protection function to effectively prevent errors Cut the package.



Show of Cellophane Packing Machine

Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 0

Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 1

Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 2



Application of Cellophane Packing Machine



Widely applied for various kinds of regular objects like food, medicine, daily appliances, cosmetic,metals, industrial parts, boxes, trays, toys and etc.

Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 3

Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 4Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 5Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 6Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 7Automatic Small Cellophane Packing Machine Cellophane Wrapping Machine 8
