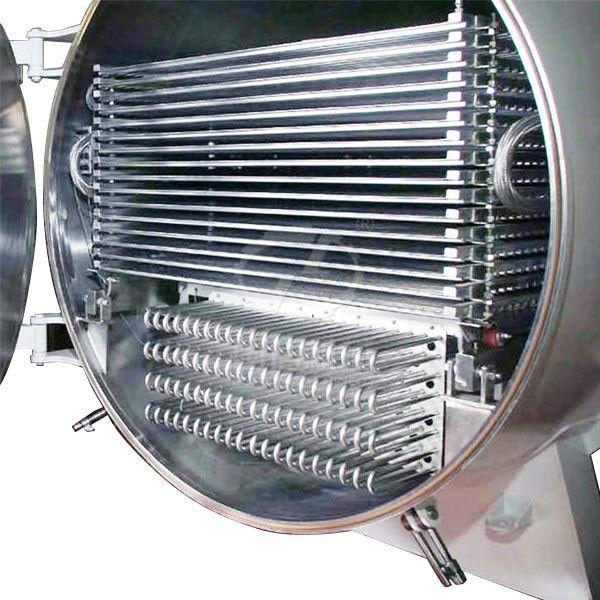

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine

  • High Light

    freeze drying equipment

    ,

    freeze dryer lyophilizer

  • Name
    Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine
  • Shelf Area
    5.2 M2
  • Shelf Size
    750*1000 Mm
  • Installation Rate
    23.5KW
  • External Dimension (L*W*H)
    4000*1500*2500mm
  • Total Weight
    3500KG
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-3M
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    90-120 days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    10 Sets per month

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine



Main Parameter of Freeze Dry Machine



Model Diameter Length Height Heating area Moisture contentoffeeding material Moisture content of dried product

Heating

resource

Water Evaporation

Dryer body

power

  mm mm mm Square meter % %   kg/h kw
MJY30-4 1700 9800 2700 30

20-80

Mobility

0.2-5

Adjustable



Steam or Hot water or

Hot oil

15-25 10.00
MJY60-6 2200 10800 3650 60 45-55 14.00
MJY80-6 2200 13500 3650 80 60-75 14.50
MJY100-6 2200 16100 3650 100 80-90 15.50
MJY120-7 2200 16100 3650 120 100-110 16.50
MJY160-8 2800 17300 4100 160 120-140 18.50
MJY200-10 2800 17300 4150 200 160-180 25.50



Main Features of Freeze Dry Machine



1. Less labor cost and energy consumption


2. Little loss of product and solvent recycling possible


3. PLC automatic control system & CIP cleaning system


4. Good solubility & excellent quality of the products


5. Continuous feed-in, dry, granulate, discharge in vacuum state


6. Completely closed system and no contamination


7. Adjustable drying temperature (30-150℃)& drying time (30-60min)


8. GMP standards



Product introduction of Freeze Dry Machine



Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device.



Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media.



With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products.



Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.



Product Show of Freeze Dry Machine



Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 0Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 1Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 2



Application of Freeze Dry Machine

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 3

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 4Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 5Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 6Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 7Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine 8
