3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power

3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power
3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power

Large Image :  3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-3M
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 90-120 days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 10 Sets per month

3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power

Description
Name: 3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power Power: 380V/50HZ/100A
Power Consumption: 19Kw Chamber Design Temperature: 90℃
Total Weight: 2000kg Whole Volume: 3500X1200X2100mm
Shelf Total Usable Area: 3.24M2 Structure: Integral
High Light:

freeze drying equipment

,

freeze dryer lyophilizer



3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power



Feature of Freeze Dry Machine​

1. With electric heating shelf and PID control standard,with programmable function


2. 16 programs can be stored, each program can be set up 32 segments


3. LCD display and record drying curves


4. Stopper by hand is available, vacuum sealing for vials can be completed.


5. RS232 interface is optional, computer connected to display freeze-drying curve


6. Air-let-in valve with nitrogen is optional


7. Eutecticpoint test device is optional



Machine Parameters of Freeze Dry Machine​

model 3 square meters
Power 380V/50HZ/100A
Power consumption 19Kw
Cooling water qty

≥3m3/h(T≤28℃)

≥2m3/h(T≤20℃)

Compressed air ≥40L/Min(P=0.4-0.5Mpa)
Defrost water consumption 60Kg/Batch(T=80℃/P≥0.2-0.3MPa)
Chamber design temperature 90℃
Shelf total usable area 3.24M2
3-5ml vials capacity 13000 bottles
Structure Integral
Total weight 2000kg
Whole volume 3500X1200X2100mm



Product Overview of Freeze Dry Machine

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials


Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.


Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles.



With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.

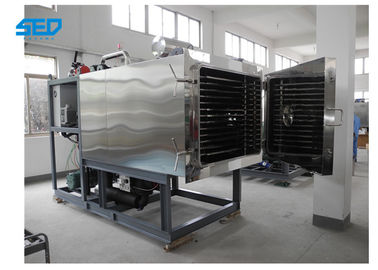

Show of Freeze Dry Machine​



3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 03 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 13 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 2



Application of Freeze Dry Machine

Freeze Drying Machine is widely used in food, fruit, vegetable, fish, sea cucumer, shrimp, meat drying indstury, chemical and biological industry etc. the dried product dried by freeze dryer is with good taste, beautiful color and good shape.

3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 3



3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 43 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 53 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 63 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 73 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power 8
