Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics

Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics
Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics

Large Image :  Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics

Product Details:
Place of Origin: China
Brand Name: SED-Pharma
Certification: CE
Model Number: 800GS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 35 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics

Description
Name: Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics Model: 800GS
Speed Max: 400m/min Thickness Of Folded Box Max: 20mm
Blank Width: 800mm Length*width*height: 16.5*1.4*1.8m
Net Weight: 6T Total Power: 25.5kW
Compressed Air: 6 Bar Air Compressor Capacity: 10m3/h
Material: Stainless Steel Key Word: Automatic Cartoning Machine
High Light:

auto cartoner machine

,

vertical cartoning machine

Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics

Product Description of Cartoner Packaging Machine



folding gluing machine is multifunction high speed machine,imported electronic components, adopt synchronous belt transmission and electronic continuously variable speeder ,feeding section adopt mechanic continuously variable, stable and easy to control and operate.



It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together. (in case of any special function required, we can design according to the customer's intention.)



Product Parameters of Cartoner Packaging Machine​

Model 650GS 800GS 1100GS
Paper material Cardboard 210-800g, A.B.E Corrugate.
Speed max 400m/min
Inching speed 10m/min
Thickness of folded box max 12mm 20mm 20mm
Blank width 650mm 800mm 1100mm
Length*width*height 13*1.4*1.8m 16.5*1.4*1.8m 16.5*1.7*1.9m
Net weight 5T 6T 7.2T
Total power 22.5kW 25.5kW 29kW
Compressed air 6 bar 6 bar 6 bar
Air compressor capacity 10m3/h 10m3/h 10m3/h
Air tank capacity 60 L 60 L 60 L





Advantages of Cartoner Packaging Machine​

1. The main drive adopts ribbed v-belt featuring stable running and precised transmission.
2. Using servo motor drive for paper feeding to accurately adjust the feeding speed and adjust the density of the carton.
3. Using T-screw for the adjustment of all guide plates (electronic screw is optional),adjustment can be easily and accurately.
4. Several thicker belts with the vibrating motor (suction feeding is optional) make the paper feeding continuously and smoothly.
5.The highly integrated crutch shaping structure makes the adjustment of all standard and non-standard cartons easily.
6.The electric glue spraying system is convenient to remove and clean.
7. Crutch belt is with automatic tension function.
8. With small box positioning device, the taller or shorter boxes can be shaped accurately.
9. Adopt the photoelectric counter and kicking device.
10. The servo motor combined with the reverse hook device can finish the folding action accurately.
11. The transmission part can adjust the paper receiving position by sliding the belt up and down. It adapts to all carton models.

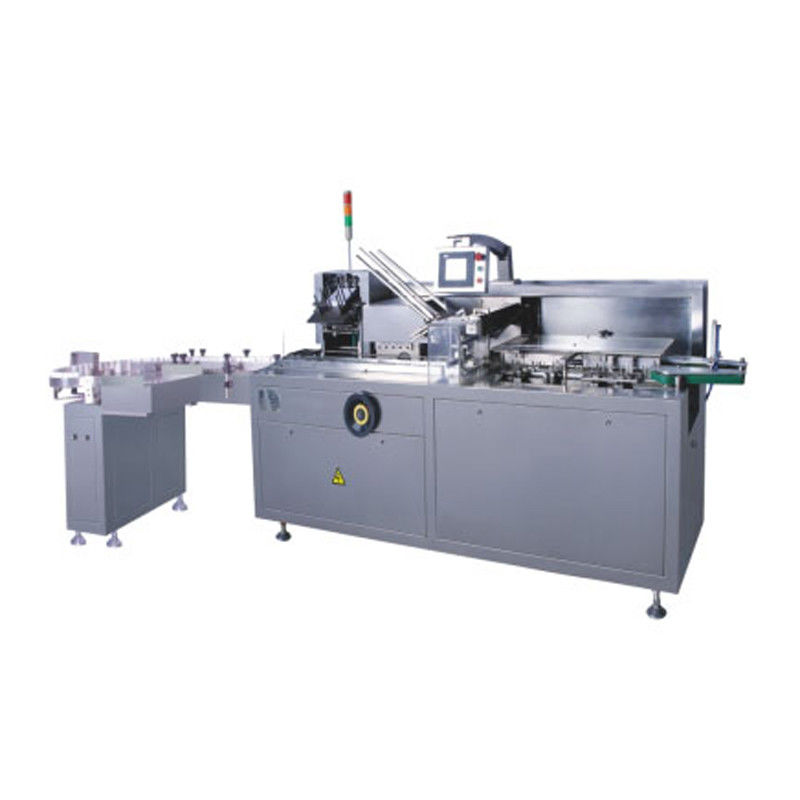

Products Show of Cartoner Packaging Machine

Multifunction High Speed Automatic Cartoning Machine For Toothpaste Cosmetics 0

Application of Cartoner Packaging Machine
