Product Details:
|
| Name: | Automatic Dust - Proof High Speed Industry Salt Tablet Pill Press Machine | Model: | SED-330-17Y-B |
|---|---|---|---|
| Max. Diameter Of Tablet(mm): | 17 | Max. Thickness Of Tablet(mm): | 6 |
| Max. Depth Of Fill(mm): | 15 | Max. Compression(kn0: | 60 |
| Rotary Speed(rpm): | 37 | Max. Capacity(tablet/h): | 37,000 |
| Dimension(mm): | 615*890*1415mm | Key Word: | Tablet Press Machine |
| High Light: | tablet press equipment,pill press machine |
||
Automatic Dust - Proof High Speed Industry Salt Tablet Pill Press Machine
Product Overview of Pill Press Machine

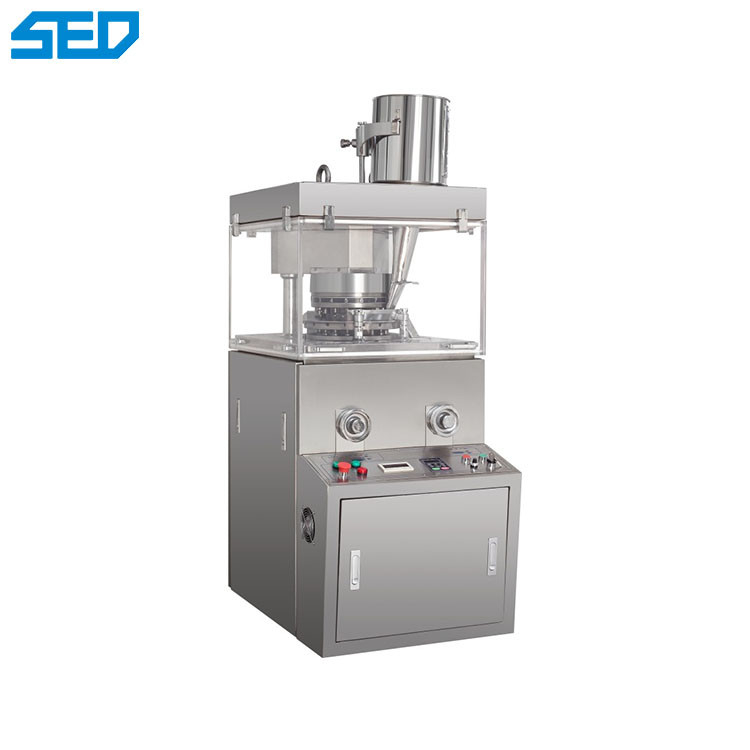

SED-330-17Y-B Automatic Rotary Tablet Press is a single-pressure automatic rotary continuous tablet press developed by our factory. It can press granular raw materials into various ordinary and special-shaped tablets. It is mainly suitable for electronics, food, daily necessities, pharmaceuticals and other industrial sectors. The outer shell is fully enclosed, and the material is made of stainless steel, which meets the GMP standard. Equipped with a transparent observation window, you can clearly see the working conditions of the machine and can be fully opened, which is easy to see and maintain the inside.
Technique Parameters
| Model | SED-330-17Y-B |
| Number of Punch Die | 17 |
| Capacity | 37000 pcs/h |
| Max. Main Pressure | 60KN |
| Max. Tablet Diameter | 20mm |
| Max. Filling Depth | 15mm |
| Max. Tablet Thickness | 6mm |
| Turret Speed | 37rpm |
| Motor Power | 2.2KW |
| Weight | 1000kg |
| Overall Dimension | 615*890*1415mm |
Features
1.High pressure, large tablet pressing range, can press ordinary, special-shaped, circular and other shapes of tablets.
2.Suitable for multi-variety and small-batch production.
3.Mechanical and electrical integration, all controllers and adjustment devices are assembled on the same side of the body, easy to operate.
4.Equipped with pressure overload protection device to avoid machine damage.
5.The transmission mechanism with oil-immersed lubrication is sealed under the body, prolonging the service life and avoiding cross-contamination.
Application of Pill Press Machine
Small tablet presses, also known as tablet presses, pill presses, tablet presses, tablet presses, are used to compress powder raw materials into tablets.
