Product Details:
|
| Name: | Large High Efficiency Continuous Working Automatic Tablet Compression Machine | Model: | SED-200-7Y-D |
|---|---|---|---|
| Capacity: | 12600 Tablets/h | Max. Diameter Of Tablet: | 12mm |
| Max. Thickness Of Tablet: | 6mm | Max. Filling Depth: | 15mm |
| Max. Main Pressure: | 40KN | Power: | 1.5KW |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| Highlight: | tablet press equipment,pill press machine |
||

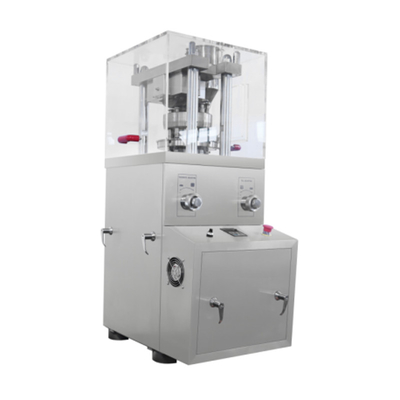

Large High Efficiency Continuous Working Automatic Tablet Compression Machine
Product description of Tablet Press Machine
This machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Characteristics:
1.Design of GMP
2.High quality all stainless steel constructions
3.Reliable safety sealing system and dust-proof system
4.High visibility isolated door to prevent cross contamination
5.Easily remove parts for quick machine's maintenance
Product Parameters of Tablet Press Machine
| Model | SED-200-5Y-D | SED-200-7Y-D | SED-200-9Y-D | SED-200-12Y-D |
| Dies | 5 | 7 | 9 | 12 |
| Max Pressure(kn) | 40 | |||
| Max Diameter of Tablet(mm) | 12 | |||
| Max Depth of Fill(mm) | 15 | |||
| Max Thickness of Tablet(mm) | 6 | |||
| Turret Speed (r/min) | 30 | |||
| Production Capacity (pc/h) | 9000 | 12600 | 16200 | 21600 |
| Motor(kw) | 1.5 | |||
| Overall Size(mm) | 480*630*1100 | |||
| Net Weight(kg) | 260 | |||
Application of Tablet Press Machine
Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.
Machine Details:
|
SUS 304 Machine frame |
|
Control panel,thickness and filling adjust wheel, emergency stop button |
|
High visibility isolated organic glass door to prevent cross contamination. |
|
Electronic control mould |
|
Hopper |
|
Toolbox with the machine |
