|Name:||Stainless Steel Auto Coater Tablet Coating Machine 300kg / Batch Loading Capacity||Model:||SED-BGW300|
|Load Capacity:||300kg / Batch||Rotation Speed Of Coating Pan (R/M):||1-13RPM|
|Main Machine Power:||3kw||Dia. Of Coating Pan:||1500mm|
|Motor Power Of Air Exhaust Cabinet:||7.5kw||Motor Power Of Hot Air Cabinet:||2.2kw|
|Material:||Stainless Steel||Key Word:||Tablet Coating Machine|
sugar coating machine,
pharmaceutical coating machine
Stainless Steel Auto Coater Tablet Coating Machine 300kg / Batch Loading Capacity
Product Overview of Coating Machine
It's a kind of equipment integrating elegance, high efficiency. Safety, easy to clean, which is applied for coating traditional Chinese and Western tablets and pills, including the micro pills, granulated pills, small pills, water pills, drip and granulated pills,
with sugar, organic film, water soluble, film and programmable PLC ( Man-machine Interface), with which its operation process and process parameters such as negative pressure and temperature can be automatically controlled.
It's easy to operate, with reasonable and advanced process during run of the machine. Main machine, cleaning system, hot air cabinet, exhaust cabinet and the thermostatic mixing drum are all made of imported high quality, stainless steel, which conforms to GMP requirements. This product has passed the certification of EU.
The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in a clean and closed drum of the film coating machine.
The coating mediums stirred in the constant temperature controlled stirring drum are sprayed on tablets through the spray gun at the inlet under the action of peristaltic pump. Meanwhile hot air up to 100, 000 level filtration are inhaled through the air distributing pipe at the center of the drum and flowed through tablets around the fan blade.
Under the action of air exhaust and negative pressure, hot air are exhausted from the other side of the air distributing pipe and discharged after dust abatement. So these coating mediums on the surface of tablets get dry quickly, forming a coat of firm, fine and smooth film. Automatically controlled by PLC, it is in normal operation.
Product Parameters of Coating Machine
|Rotation Speed of Coating Pan (R/M)||1-13RPM||1-16RPM||1-19RPM||1-21RPM|
|Main machine Power||3kw||2.2kw||1.5kw||0.75kw|
|Dia. of Coating Pan||1500mm||1280mm||1006mm||825mm|
|Motor Power of Air Exhaust Cabinet||7.5kw||5.5kw||3kw||2.2kw|
|Air Exhaust Fan Flow||10000m³/h||7419m³/h||5266m³/h||3517m³/h|
|Motor Power of Hot Air Cabinet||2.2kw||1.5kw||1.1kw||0.75kw|
|Hot Air Fan Flow||3517m³/h||2356m³/h||1685m³/h||1285m³/h|
|Weight of Main Machine||1200kg||1000kg||800kg||550kg|
trait of Coating Machine
1. The drum of the main machine has a closed poreless structure and is equipped with a flow-guiding sheet. Tablets can make easy and smooth rotation without fragment and chipped edge in the drum due to mirror polishing of its wall and flow-guiding sheet. Which greatly improves the yield. The perforated machine has a wide application, energy and auxiliary saving and easier to clean.
2. During air intake, three level filtration involving primary filtration, medium filtration and high filtration, can reach 100, 000 level purification. During air exhaust, dust abatement can reach 99% by adopting a bag-type dust extractor.
3. A specially designed air source exchange system features exchange of hot air an cold air depending on the technological requirements, so to say, the fan propeller can be regarded as air inlet or air outlet. The propeller hole bore can meet the user's requirement from 0.6 to 3.00 mm, which is suitable for all types of tablet coating.
4. An eye detecting explosion-proof lamp is equipped in the drum so as to clearly view all material in run for the convenience of accurately control of coating technological in range.

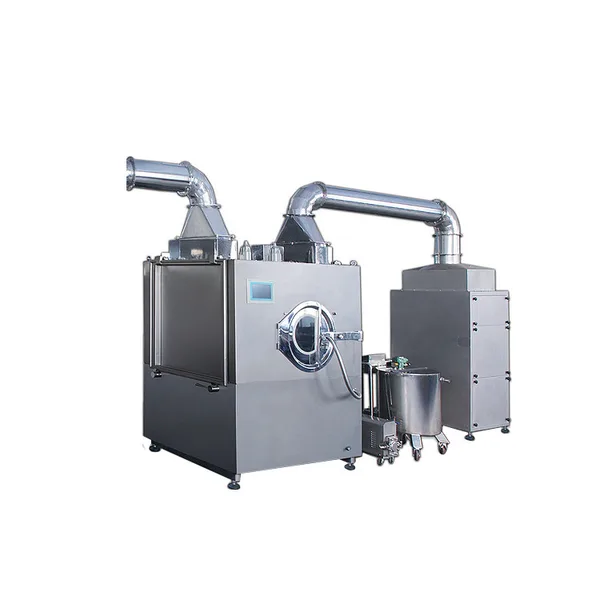

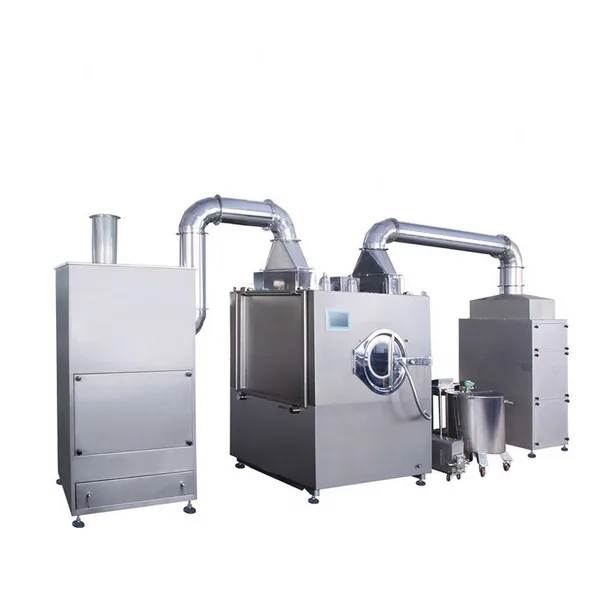

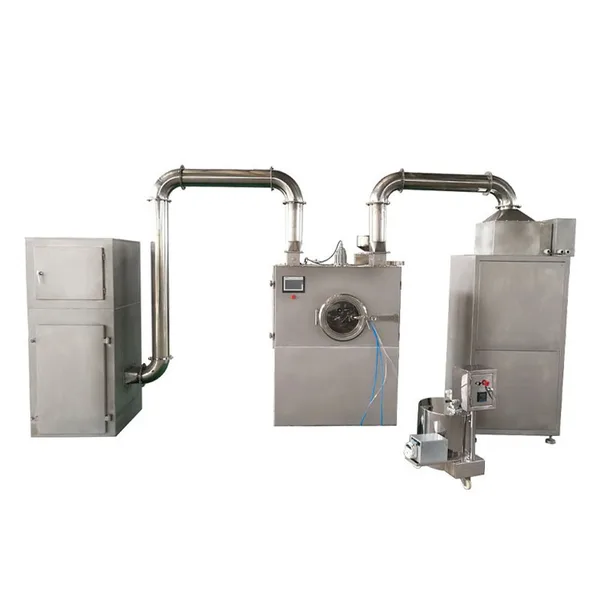

Product Show of Coating Machine
Application of Coating Machine
The size and shape of the peanut sugar coating machine can be customized according to different uses: 1. Film coating of tablets, pills, etc. in the pharmaceutical industry 2. Sugar and chocolate coating of nuts, fruits, popcorn, etc. in the food industry
3. Powder, Paint, chemical color coating 4. Polishing, polishing and rolling of spherical finished products, such as: pearl balls, chewing gum, candy.
