Product Details:
|
| Name: | Stainless Steel Nut Sugar Film Coating Machine With Long Life Time Service | Model: | SED-JB800 |
|---|---|---|---|
| Production Capacity(kg/run): | 10 | Three/two Drums: | 3/5/10 |
| Diameter Of Drum(mm): | 500/520/610 | Motor Power Of Peristaltic Pump(Kw): | 0.18 |
| Overall Dimension Of Main Machine(mm): | 970*880*1800 | Motor Power Of Hot Air Machine(Kw): | 0.75 |
| Material: | Stainless Steel | Key Word: | Tablet Film Coating Machine |
| High Light: | sugar coating machine,pharmaceutical coating machine |
||
Stainless Steel Nut Sugar Film Coating Machine With Long Life Time Service
Product Overview of Film Coating Machine

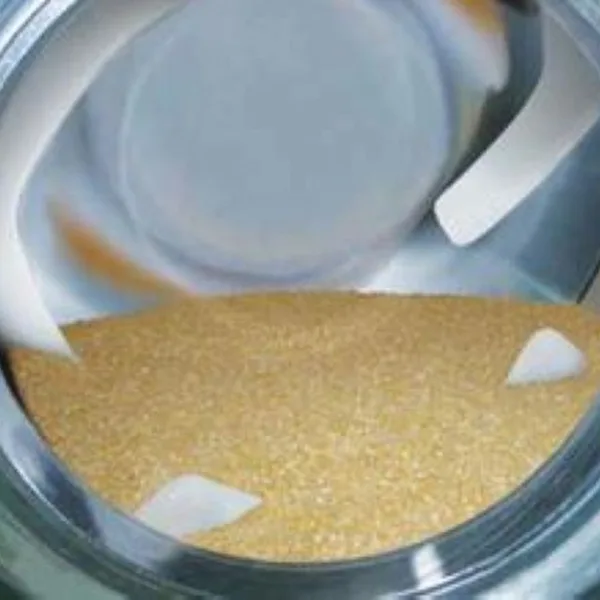

The tablet cores make continuous and complicated orbital motion within the closed rotating drum under the action of a streamline guide plate. During the motion, coating medium automatically sprays according to the technological process and rational technological parameters, at the same time hot air is supplied under a negative pressure.
The hot air penetrates through the tablet core layers and is discharged from bottom of the layers, so that the coating medium sprayed on the surface of tablet cores will dry rapidly and evenly, thus forming a solid and smooth surface film.
This machine is suitable for distributing powder products for medium and large drug factory,such as antibiotics, biochemical drugs, with automatic stoppering function.
This machine is suitable for molded and tube glass bottle with diameter of 22,24,30mm.Machine can be customed according to different bottle size.
Bottle: GB2640,GB2641standards.
Rubber stopper: HG4-559Standards.
Product Parameters of Film Coating Machine
| Model | BGB-10F | BGB-10F | BGB-10F |
| Production capacity(kg/run) | 10 | 20 | 40 |
| Three/two drums | 3/5/10 | 5/10/20 | 20/40 |
| Diameter of drum(mm) | 500/520/610 | 520/580/680 | 720/850 |
| Speed-adjusting range of coating drum(rpm) | 6-30 | 6-25 | 4-21 |
| Speed-adjusting range of coating drum(rpm) | 0.55 | 0.75 | 1.1 |
| Regulating rang of hot air temperature(℃) | Normal temperature to 80℃ | ||
| Motor power of hot air machine(Kw) | 0.75 | 0.75 | 1.1 |
| Motor power of exhaust machine(Kw) | 2.2 | 2.2 | 3 |
| Motor power of vibration dust-cleaning device(Kw) | 0.37 | 0.37 | 0.37 |
| Motor power of peristaltic pump(Kw) | 0.18 | 0.03 | 0.18 |
| Overall dimension of main machine(mm) | 970*880*1800 | 1140*1000*1900 | 1120*1100*1840 |
| Weight of main machine(Kg) | 450 | 500 | 600 |
trait of Film Coating Machine
1.CIP Cleaning System
2.High end professional Jiangnan self-made Spray Gun
3.Mechanical device of cauldron wraping little material
Product Show of Film Coating Machine
Application of Film Coating Machine
This chocolate sprayer is mainly used for making granules and film coating on tablets. It can also be used to make spherical products or granules, mixing, polishing, etc.
