Product Details:
|
| Name: | Fully Automatic Capsule Filling Machine With Touch Screen | Capacity: | 3800 Capsules/min |
|---|---|---|---|
| Filling Type: | Powder, Pallet,tablet | No. Of Segment Bores: | 27 |
| Power Supply: | 380/220V 50Hz | Suitable Capsule Sizes: | 00#-4# Capsule |
| Filling Error: | ±3%-±4% | Machine Dimensions: | 1850mm (L) X 1470mm(W) X 2080mm(H) |
| Highlight: | capsule filling device,capsule filling equipment |
||

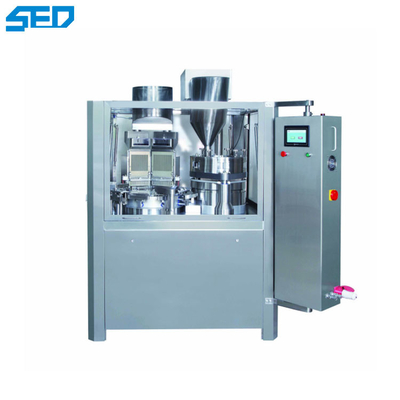

Fully Automatic Capsule Filling Machine With Touch Screen
Products Description of Capsule Filling Machine
SED-3800J-H Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.
Detailed Parameters of Capsule Filling Machine
| Model | SED-3800J-H |
| Capacity | 3800 capsules/min |
| Filling Material | Powder, Granules |
| Die Hole Number | 27 |
| Power Supply | 380V 50Hz |
| Total Power | 9.37KW |
| Application | 00#-4# capsule |
| Noise | ≤75dB(A) |
| Overall Dimension | 1850mm (L) x 1470mm(W) x 2080mm(H) |
| Weight | 2400kg |
Features
1.This equipment is a kind of automatic hard capsule filling equipment with intermittent action and orifice plate filling. The filling and rotating parts are fully enclosed, and the upper mold base has a beautiful appearance design without dead ends, which is convenient and easy to clean.
2.The upper and lower modules operate in one direction, and the imported double-lip polyurethane sealing ring has good sealing performance.
3.The combination of air blowing and air suction at the module cleaning station ensures that there is no dust in the die hole during high-speed operation.
4.The locking station is equipped with a powder suction device.
5.The finished product output station is equipped with a capsule blocking ring, no flying dust.
6.The material of the dosage disc is made of copper, which increases wear resistance and is not easy to deform.
Products Show of Capsule Filling Machine
Application of Capsule Filling Machine
