Pharmaceutical Machinery Equipment

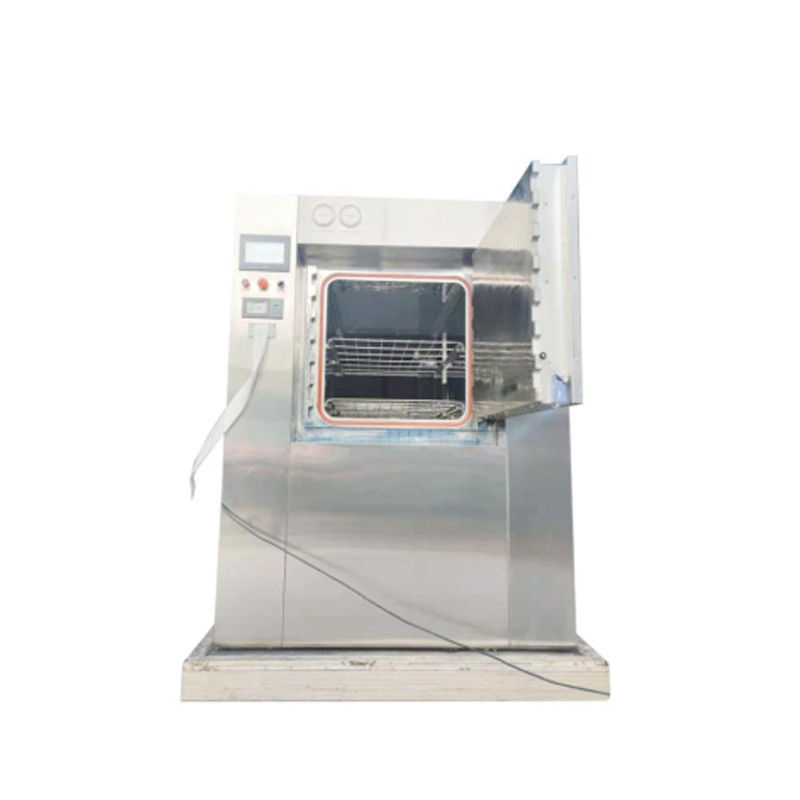

Pulsating Vacuum Autoclave With GMP Technical Standard
Product Overview of Autoclave Machine The machine is strictly designed and manufactured in accord with GMP technical Standard. has been certified compliant with the ISO 9001 standard and the ISO 13485 standard. Moreover, the sterilizers presented here are designed and manufactured in compliance with China Pressure Equipment Directive – GB150. The product is suitable for hospitals, pharmaceutical factories, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium. etc. Product Parameters of Autoclave Mach
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-2.0MM-A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 working days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Pulsating Vacuum Autoclave With GMP Technical Standard
- Chamber size(L*W*H)
- 2500*750*1100 mm
- Overall size(L*W*H)
- 2746*1510*1950 mm
- Chamber design pressure
- -0.1~0.3Mpa
- Design temperature
- 139℃
- Design pressure
- 0.245Mpa
- Work pressure
- 0.22Mpa
- Chamber material
- Thickness:6mm,material:SUS304
- material
- stainless steel
- key word
- Pulsating Vacuum Autoclave
Product Overview of Autoclave Machine
The machine is strictly designed and manufactured in accord with GMP technical Standard. has been certified compliant with the ISO 9001 standard and the ISO 13485 standard. Moreover, the sterilizers presented here are designed and manufactured in compliance with China Pressure Equipment Directive – GB150.
The product is suitable for hospitals, pharmaceutical factories, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium. etc.
Product Parameters of Autoclave Machine
| Chamber size(L*W*H) | 2500*750*1100 mm |
| Overall size(L*W*H) | 2746*1510*1950 mm |
| Chamber design pressure | -0.1~0.3Mpa |
| Design temperature | 139℃ |
| Design pressure | 0.245Mpa, |
| Work pressure | 0.22Mpa |
| Chamber material | Thickness:6mm,material:SUS304 |
|
Temperature equilibrium |
≤±1℃ |
| PT100 Temperature sensor |
2pcs, 2 sensor movable inside the chamber, 1 sensor fixed at the drain port |
| Time set | 0~999min,adjustable |
| Electricity supply |
4kw 380V,50Hz, 3 phase 4 wires |
|
Steam supply(0.2~0.3Mpa) |
Pipe diameter:DN25, 100kg/cycle |
|
tap water supply(0.2~0.3Mpa) |
Pipe diameter:DN25, 500kg/cycle |
|
compressed air supply(0.6~0.8Mpa) |
Diameter:φ6mm, 0.2m³/cycle |
Application of Autoclave Machine
This equipment is used for sterilization and depyrogenation of heat-resistant materials that cannot be sterilized by moist heat, such as glass bottles, vials, glassware, metal containers and equipment parts.
