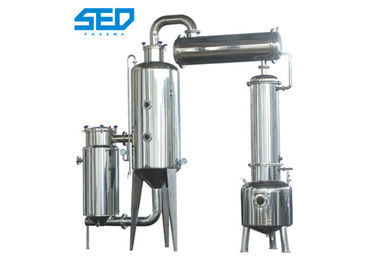

Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine

Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine
Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine

Large Image :  Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-500DZN
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 working days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine

Description
Name: Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine Item Name: Single Effect Evaporation Machine
Capacity Of Recovery: 500KG/H Recovery Ethanal Concentration: 80-85%
Concentrate Ration: 1.2-1.4% Power Of Vavuum Pump: 11KW
Material: Stainless Steel Key Word: Herbal Extraction Equipment
High Light:

herbal extraction machine

,

herb extraction machines



Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine



Simple Instruction of Extraction Equipment



This equipment is suitable for evaporating and concentrating liquid material and recycling the organic solvent and cream in pharmaceutical, food stuff and chemical industry, etc.



Main Technical Data  of Extraction Equipment

Volume 1500L
Capacity of recovery 500kg/hour
Steam Pressure 0.05-0.09MPa
Recovery ethanal concentration 80-85%
Concentrate ration 1.2-1.4%
Power for vacuum pump 11KW





Feature of Extraction Equipment



This equipment mainly applies to concentrate the alcohol-extracted liquid and recover alcohol,and perform concentrating of alcohol sediment and recovering of alcohol synchronously.It is also used to concentrat the extracted liquid.


Adopts a strong-flow technology of external heating temperature difference cycling,whoes cycling speed is high,and evaporating speed is fast,shorten the heating time of the materials.



Adopts vacuum decompressing ,which can make the materials evaporate fast under low temperature,its concentrating ratio can reach 1:1.4



Adopt enlarging condensation and cooling area,which can make alcohol recovering rate reach over 95% under the vacuum state and alcohol’s loss probability is lower than 5%.



Photo Show of Extraction Equipment





 Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine 0



Application of  Extraction Equipment



1.as a common product in producing Chinese tradition medicine, is often used to extract effective ingredients from animals and plants and perfume oil in such fields as pharmaceutical manufacturing, biology, food, chemical industry etc.


2.suitable for containing high grease composition of plant leaves, flowers, grass and animal material in conventional oil, essential oil, fragrant oil composition of water distillation extraction process.

Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine 1






Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine 2Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine 3Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine 4Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine 5Organic Solvent Recycle Herbal Extraction Equipment Single Effect Evaporation Machine 6
