Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen

Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen

  • High Light

    blister packaging equipment

    ,

    blister tablet packaging machines

  • Name
    Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen
  • Condition
    New
  • Automatic Grade
    Automatic
  • Power
    14.5kw
  • Dimension
    3130*975*1850mm
  • Scope
    20-250 Mm
  • Air Consumption
    ≥0.6m3/min
  • Speed
    60-180 Cuts/min
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-220GP
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    35 Days after receiving the advance payment
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets per month

Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen

Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen



Main Technical Data of Blister Packing Machine



Model SED-220GP
PVC Non-toxic PVC Thickness 0.25 X Width≤220(mm)
PTP Aluminum Foil
PVC & PTP
Thickness0.02 X Width ≤220(mm)
OD of Reel< φ400mm
Dia of Reel Core:φ70~80(mm)
Cutting speed(3 Gears) 40~120times/min
Packing Efficiency Capsules:11-17 ten thousand/h
Tablets:15-30 ten thousand/h
Overall Dimensions (LXWXH)3140mmX940mmX1600
Weight 4000Kg
Installed Power 12.5Kw 380V 50Hz/220V 60Hz



Product Description of Blister Packing Machine



The blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.



Feature of Blister Packing Machine



1. Plate-type universal feeder although easy and not high effective, it is very extensively applied and suitable for large size and small size capsule, various tablets and pills.



2. High speed vibrating feeding. The feeder can suitable for any speed of the machine. Our Vibration Feeder adopts Stainless Steel tube for feeding, Suitable for GMP Standard.



3. High-precise servo stepping. The machine adopts Servo Motor for Running. So the speed adjusting and running will be more accuracy.



4. The machine is equipped Double Sealing makes the Sealing Perfect, no air run trough the seal.

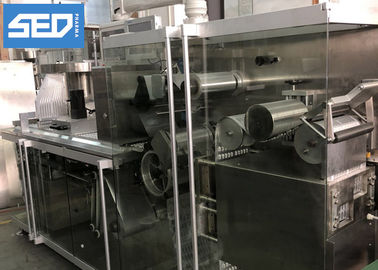

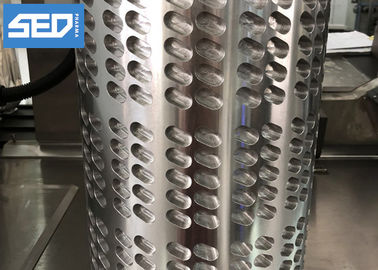

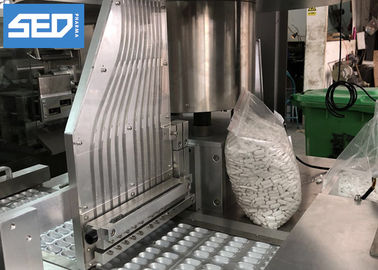

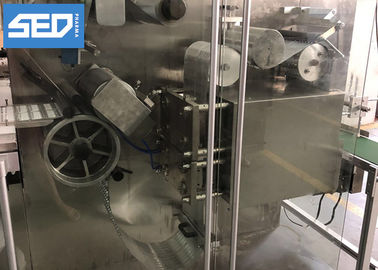

Product Show of Blister Packing Machine



Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 0Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 1Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 2







Application of Blister Packing Machine

Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 3

Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 4Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 5Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 6Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 7Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen 8
