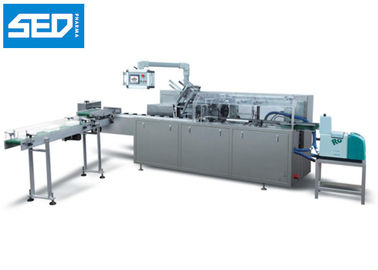

Product Details:
|
| Name: | Fully Automatic Horizontal Versatile Cartoning Machine For Ampoules Vials Syringes And Pre-filled Syringes | Unfolded Leaflet Specification: | (80-250)mm×(90-170)mm |
|---|---|---|---|
| Folded Leaflet Specification: | (90-170)mm×(25-40)mm | Working Pressure: | ≥0.6Mpa |
| Air Consumption: | 120-160L/min | Carton Quality Requirement: | 300-350g/m2 |
| Encasing Speed: | 30-120 Boxes/min | Suitable Carton Size: | (65-120)mm×(30-60)mm×(30-60)mm |
| Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
| Highlight: | auto cartoner machine,vertical cartoning machine |
||
Product Technical Data of Automatic Cartoner
| Item | Parameters | |
| Encasing speed | 30-100 boxes /min | |
| Box | Quality requirement | 250-350g/m2[Base on carton size] |
| Dimension range(L×W×H) | (70-180)mm×(35-85)mm×(14-50)mm | |
| Leafle | Quality requirement | 60-70g/m2 |
| Unfolded leaflet specification | (80-250)mm×(90-170)mm | |
| Fold range | [1-4]Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 220V 50HZ | |
| Main motor power | 0.75kw | |
| Machine dimension(L×W×H) | 3100mm×1100mm×1550mm | |
| Machine weight |
1400kg |
|
Features of Automatic Cartoner
Application of Automatic Cartoner
This equipment is new model developping base on integrated domestic and foreign vanguard technology .
It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for sachet,pouch,soft al/al strips, wound plaster ,ointment plaster, facial mask plaster,coffee bag into carton.
On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
Show of Automatic Cartoner
Application of Auto Cartoner Machine
