|Name:||SED130-5Y 5 Punches Button Controlled Pharmaceutical Machinery Equipment Rotary Tablet Press Machine 12000 Pcs Per Hour||Punch Station:||5 Punches|
|Machine Type:||Rotary Pressing||Suitable Material:||Granules|
|Max Diameter:||20mm||Max Pressure:||60KN|
|Max Thickness:||6mm||Max Filling Depth:||22mm|
|Capacity:||12000 Pcs Per Hour||Length Of The Lower Shank (mm):||183|
|Material:||Stainless Steel||Key Word:||Rotary Tablet Press Machine|
machinery for pharmaceutical industry,
pharma process equipment
SED130-5Y 5 Punches Button Controlled Pharmaceutical Machinery Equipment Rotary Tablet Press Machine 12000 Pcs Per Hour
Performance of Tablet Press Machine
This machine is designed for small pharma factory, healthcare plant, food plants and preparation rooms,can be used to pack solid drugs like capsule, tablet, gelatin pearl, suppository, milk tablet, candy and hardware.
The whole set is of compact design, beautiful appearance, smooth operation and low noise. Use internal heating method to ensure the PVC is evenly heated. There is no bubble in the aluminum foil while heating and hence no waste will occur
Product Parameters of Tablet Press Machine
|Maximum compression (KN)||60|
|Max. Diameter of tablet to be produced (mm)||20|
|Max. Filling depth (mm)||22|
|Max. Thickness of tablet (mm)||6|
|Diameter of the upper/lower shank (mm)||32|
|Length of the upper shank (mm)||175|
|Length of the lower shank (mm)||183|
|Diameter of the die (mm)||36|
|Thickness of the die (mm)||28|
|The diameter of the circle of the central pitch of upper &lower punches on the turret||320mm|
|Rotary speed of the turret (rpm)||10-40|
|Capacity of the tablets||12000|
|Area to occupy (mm 2 )||930x950|
|Height of the machine (mm)||1550|
|motor power (kw)||2|
|Net weight of the machine (kg)||270|
Feature of Tablet Press Machine
1. The cover is made of stainless steel with close type. The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with organic transparent window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.

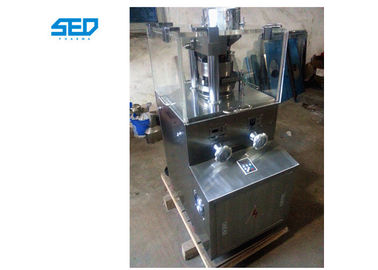

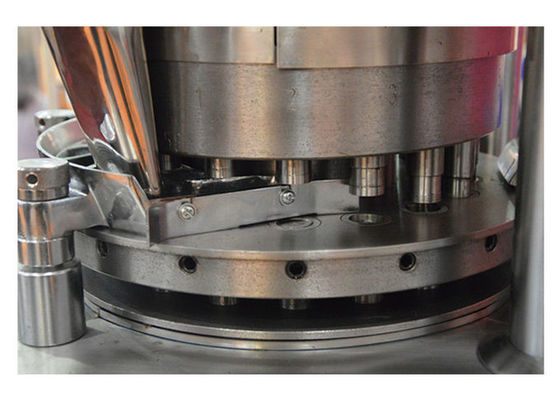

Show of Tablet Press Machine
Application of Tablet Press Machine
This machine is a single-compression/double-compression continuous automatic tablet press, which is used to compress granular raw materials into tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.
