Product Details:
|
| Name: | Stainless Steel Semi Automatic Capsule Filler For Small Scale Production | Filling Material: | Moisture-free, Non-sticky Small Particles |
|---|---|---|---|
| Air Pressure: | 0.03m3/min 0.7Mpa | Suitable Capsule Size: | 000#-4# |
| Power: | 2.12kw | Capacity: | 1000-25000 Capsules/h |
| Net Weight: | 380kg | Key Word: | Powder Capsule Filling Machine Automatic Capsule Filling Machine |
| Highlight: | capsule filling device,capsule filling equipment |
||

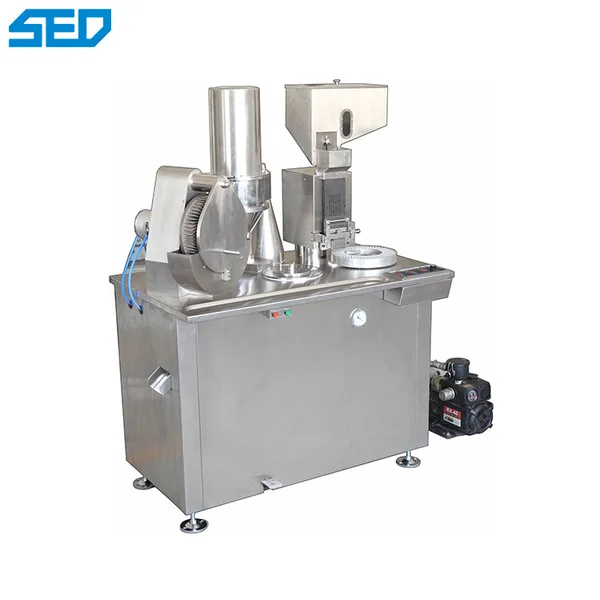

Stainless Steel Semi Automatic Capsule Filler For Small Scale Production
Product Description of Capsule Filling Machine
SED-BJ-I-H Semi-Automatic Capsule Filling Machine is special capsule filling machine, which is suitable for capsule filling of powder and granules in small and medium pharmaceutical factory, hospital preparation lab, etc. And it can complete capsule sewing, separating, filling, locking, etc.
The machine is composed of U-shaped turning and separating mechanism, locking device, electronic speed adjustment mechanism, electronic and pneumatic control system, protection device, vacuum pump, air pump and other accessories.
Technical Parameters of Capsule Filling Machine
| Model: | SED-BJ-I-H |
| Capsule Size: | #000-#4 |
|
Air Pressure |
0.03m3/min 0.7Mpa |
| Overall Dimensions: |
1140*780*1600mm |
| Net Weight: | 380Kg |
| Gross Weight: | 450Kg |
| Capacity: | 1000-25000 capsules/hour |
Main Features of Capsule Filling Machine
1. The automatic hard capsule filling equipment with intermittent action and hole-disk filling is fully enclosed at the filling and turning parts, which is convenient for cleaning;
2. The upper and lower modules of the capsule filling machine move in one direction, and the imported double-lip polyurethane sealing ring has good sealing performance;
3. The module cleaning station of the capsule filling machine is combined with air blowing and inhalation, and the die hole is operated at high speed without dust;
4. The locking station of the capsule filling machine is equipped with powder suction equipment;
5. The capsule filling station of the capsule filling machine is equipped with a capsule ring, and there is no dust flying.

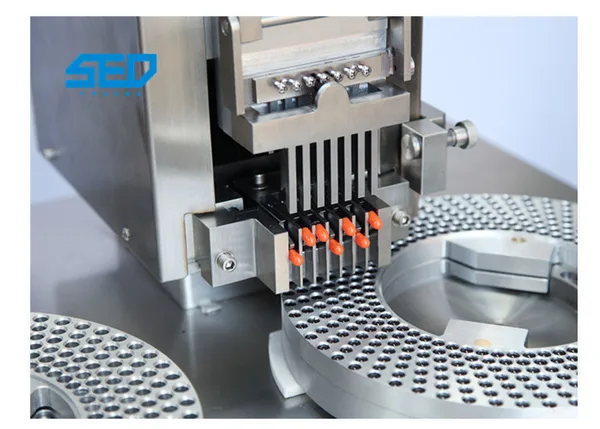

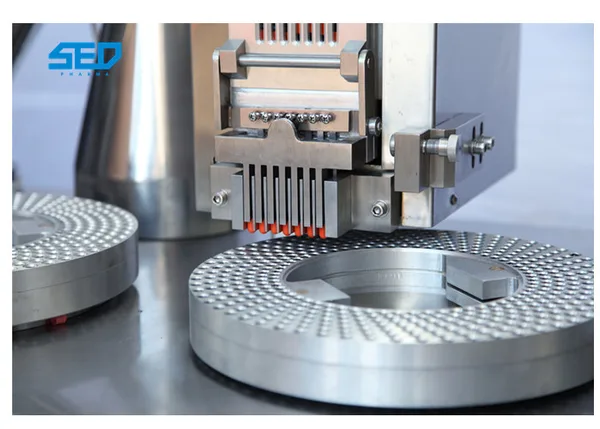

Product Show of Capsule Filling Machine
Application of Capsule Filling Machine
