Blister Packing Machine
Alu - PVC Blister Packing Machine Automatic Flat Type For Tablets & Capsules
Product Overview of Blister Packing Machine The Model SED-250P Automatic AL-Plastic or AL-AL Blister Packing Machine is an up-to-date product, which is carefully made on the basis of absorbing many years' manufacture technology and experience of this company and researching into the advantages of the same kind of products both at home and abroad. The product, with integrated mechanical, photo- electric and pneumatic control, are featured by adjustable stroke, split type machine body, pattern photoelectric register and the capsule arrangement by color separation. The
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-250P |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the advance payment |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Alu - PVC Blister Packing Machine Automatic Flat Type For Tablets & Capsules
- Item Name
- Blister Packing Machine
- Cutting speed
- 20-40 cuttings per minite
- Blister quantity per cutting
- 1-8 blisters(according to blister size)
- Max forming area
- 270×120×25mm
- Sealing Power
- 1.5kw
- Main motor power
- 1.5kw
- Power supply
- 380V 50HZ Three phase(Customized)
- material
- stainless steel
- key word
- Blister Packing Machine
Product Overview of Blister Packing Machine
The Model SED-250P Automatic AL-Plastic or AL-AL Blister Packing Machine is an up-to-date product, which is carefully made on the basis of absorbing many years' manufacture technology and experience of this company and researching into the advantages of the same kind of products both at home and abroad.
The product, with integrated mechanical, photo- electric and pneumatic control, are featured by adjustable stroke, split type machine body, pattern photoelectric register and the capsule arrangement by color separation.
The machine can be widely used in pharmaceutical, food stuffs, chemical and other industries for composite sealing packing with full blisters and flat pressed sheets. Besides, we can offer customers excellent service.
Product Parameters of Blister Packing Machine
| No. | Item | Data | ||
| 1 | Cutting Speed | 10-40 cuttings/min | ||
| 2 | Capacity | Standard:9600 Blisters/hour | ||
| 3 | Scope adjustable range | Standard 10-120mm | ||
| 4 | Blister size | Standard:80 mm×57mm | ||
| 5 | Max forming area and depth | 270mm×150mm×28mm | ||
| 6 | Packing material | PVC:Width 250mm,Thickness 0.15-0.5mm | ||
| 7 | Heating power | Forming | 1.5KW | |
| Sealing | 1.5KW | |||
| 8 | Main motor power | 1.5KW | ||
| 9 | Power supply | 380V 50HZ three phase five wires | ||
| 10 | Air consumption | ≥0.2m3/min(Prepared by client) Pressure:0.4～0.6Mpa | ||
| 11 | Mould cooling | Tap water or circulation water | ||
| 12 | Dimension(L×W×H) | Whole | 3345mm×635mm×1560mm | |
| Separate | 1670mm×635mm×1560mm | |||
| 13 | Weight | 1500Kg | ||
Feature of Blister Packing Machine
1. With frequency converted speed control, the max. Speed can be up to 20-40 times/min.
2. Stroke adjustable within a range of 270mm. Easy operation and accurate and synchronization
3. After 1~6 times of punching process, the blistered sheet size can be selected.
4. Plate type dies, positive pressure forming, little material-wasted punching and electronic counter adopted with batch no.
Stamping, greasing and cutting functions and the warnings for broken or finished sheets and automatic shutdown provided.
5. With a duplex speed variation feeder adopted, the filling rate can be more than 98%.

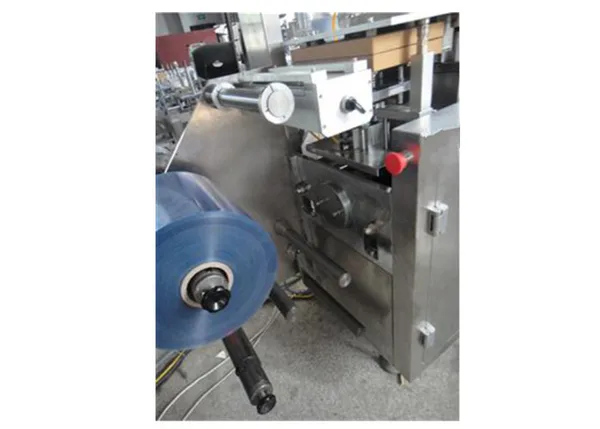

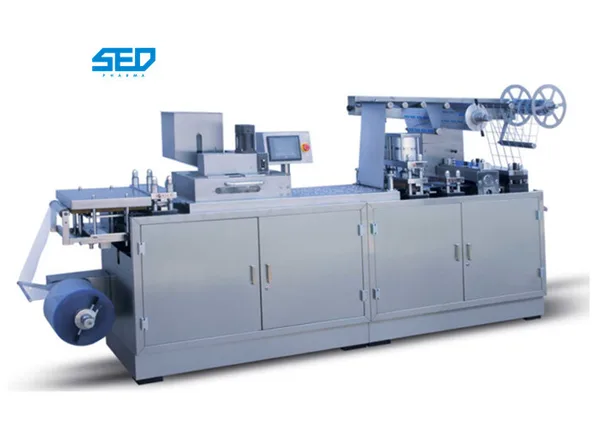

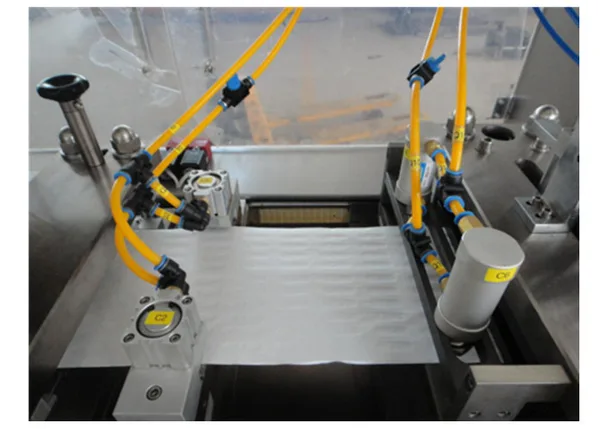

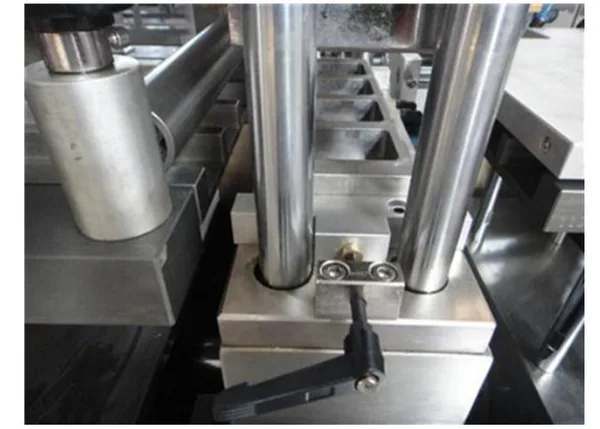

Product Show of Blister Packing Machine
Application of Blister Packing Machine
