Product Details:
|
| Name: | Desktop Electric Continuous Single Punch Manual Tablet Press Machine | Max Compression: | 50KN |
|---|---|---|---|
| Power: | 750W | Weight: | 125KGS |
| Condition: | New | Dimension: | 700*400*800mm |
| Capacity: | 4500 Tablets Per Hour | Max Diameter: | 20mm |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| High Light: | 50KN Tablet Press Machine,Single Punch Tablet Press Machine,750W Tablet Press Equipment |
||

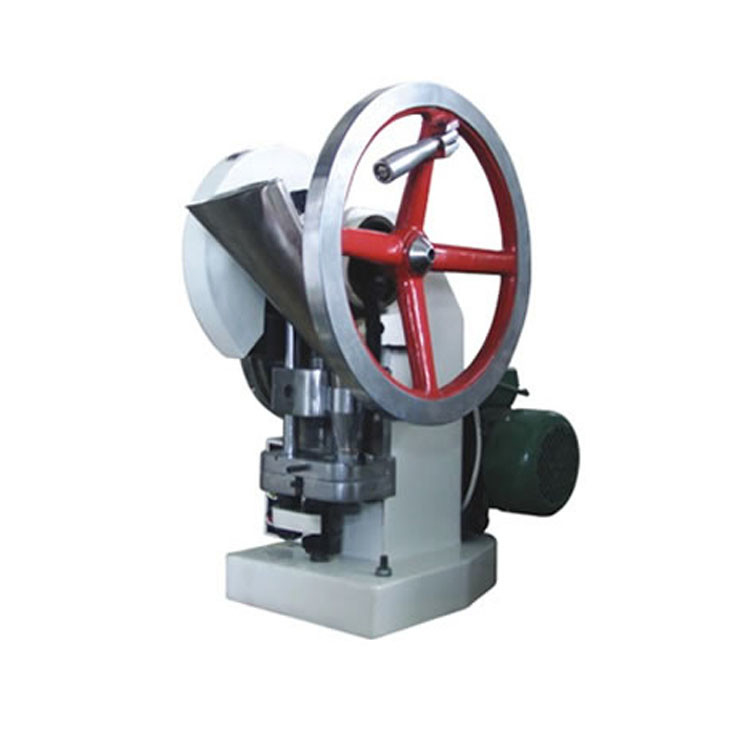

Desktop Electric Continuous Single Punch Manual Tablet Press Machine
Product Overview of Tablet Press Machine
This machine is used to press various granular raw materials into discs, which is suitable for laboratory system and small-scale production. It is characterized by a small desktop electric continuous tablet press machine, which can also be operated by hand. Only one punching die can be installed on the machine, and the filling depth of the material and the thickness of the sheet can be adjusted.
Product Parameters of Tablet Press Machine
| Model | SED-5DY-D |
| Max. Pressure | 50KN |
| Max. Dia. | Round: Φ20 |
| Max. Filling Depth | 16mm |
| Max. Thickness | 6mm |
| Capacity | 4500pcs/hour |
| Motor Power | 750W.1400r/min 110V 50Hz |
| Overall Dimension | 700*400*800mm |
| Weight | 125kg |
Feature of Tablet Press Machine
This model has excellent performance, strong adaptability, convenient use, convenient maintenance, small size, light weight, and can be hand-operated without electricity. The machine only needs to install one punch, and the filling depth of the material and the thickness of the tablet can be adjusted to meet the requirements of the pharmaceutical industry for pressing a variety of Chinese and Western medicine tablets and other industries to press similar products.
Application of Tablet Press Machine
The single punch tablet machine can press powder and granular raw materials into tablets, which can be widely used in pharmaceutical factories, chemical factories, food factories, hospitals, scientific research units, laboratory trial production and small batch production.
