High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical

High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical
High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical

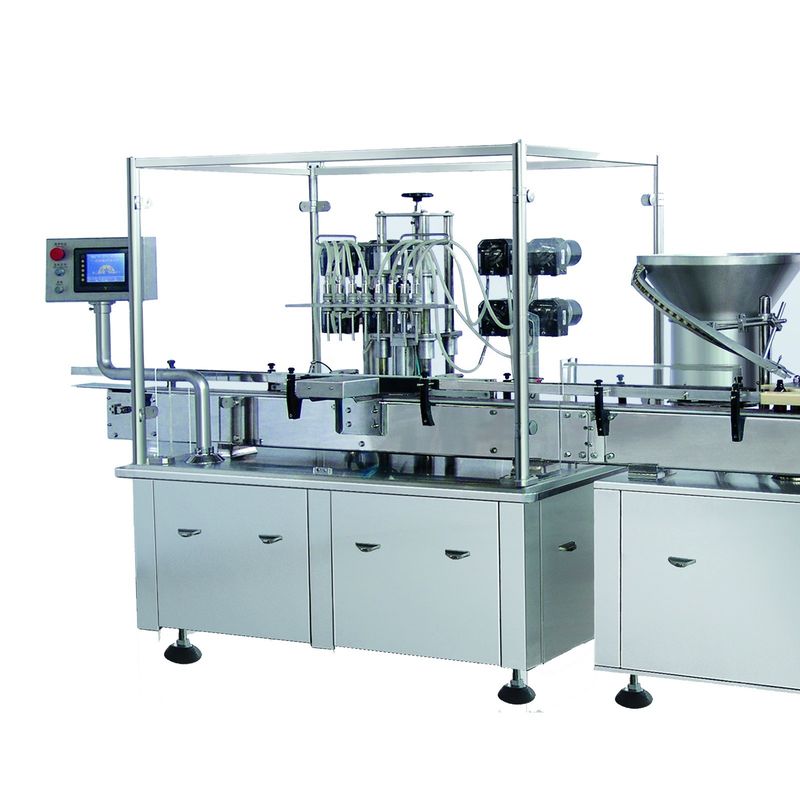

Large Image :  High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-10/2/2GSX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical

Description
Name: High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical Filling Specifications: 50,100,250 Ml
Filling Head: 10 Pcs Single Machine Noise: ≤70dB
Clean Air Pressure: 0.3-0 .5 Mpa Usage: 30m3/h
Power Supply: 380V 50HZ Total Power: 1.5KW
Dimensions (L × W × H): 3200×1000×1780(mm) Loading Accuracy: ± 2%
High Light:

250ml Liquid Quantitative Filling Machine

,

Pharmaceutical Quantitative Filling Machine

,

380V Quantitative Filling Machine

High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical



Machine Parameters of Liquid Quantitative Filling Machine

Filling Specifications
50,100,250 ml
Production capacity
50ml 120 vials / min
100ml 100 vials / min
250ml 50 vials / min
Filling head
10 pcs
Single machine noise
≤70dB
Clean Air pressure
0.3-0 .5 Mpa
Usage
30m3/h
Power Supply
380V 50HZ
Total power
1.5KW
Loading accuracy
± 2%
Dimensions (L × W × H)
3200×1000×1780(mm)
Weight
1200kg



Product Description of Liquid Quantitative Filling Machine

This machine is automatic high-dose quantitative filling machine can be used in liquid, thin mucus in the body of the filling operation, the design based on pneumatic linear motion means, the use of PLC logic controllers and various detection sensors and cylinder retractable time difference



The vessel stopped at the filling position until the filling is completed, it will be filling the container opening while filling the containers are not transported to the filling position, and so forth movement, to the effect of automatic filling .



To make the filling material to reduce pollution and achieve the purpose of cleaning, the parts touch with liquid use stainless steel 316L, non-toxic materials such as silicone rubber, and designed to remove as much as possible, the combination of simplicity In the design of the replacement of the flexible, simple, easy to understand to learn, in a short time, change different container filling operations.



The machine can be used alone and integrated mechanical to achieve the operation of production lines. It suits general chemical, pharmaceutical, food, cosmetics, cleaning supplies and other automatic filling job.



It consists of single-track conveying bottles, cylinder position, and ten-pin filling. The main structure consists of the inlet and outlet bottle transport sector, peristaltic pump filling bodies, cylinder positioning mechanism, inside the transport mechanism and control system components.



Feature of Liquid Quantitative Filling Machine


1)Inlet and outlet bottle: It consists of inlet and outlet bottle conveyor belts and power transmission



2)Peristaltic pumps filling organizations: Adopt the ten peristaltic filling pumps to accurately control the amount of ceramic filling pump.



3)Cylinder positioning mechanism adopts PLC logic controllers and various detection sensors and retractable cylinder of the time difference, the vessel stopped at the filling position until the filling is completed, it will be open the filled container, while not filling containers transported to the filling position, and so forth action, to achieve automatic filling effect.



4)Transmission box: box by the motor, gear, gear, cam and chain drive mechanism, deputy station to complete the implementation of the required power.



5)Control system: adopt fixed frequency to frequency control motor function. The adjustments depend on step motor controlled by a microcomputer, with no parking will be able to adjust the load



Advantages of Liquid Quantitative Filling Machine

High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical 0

High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical 1High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical 2High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical 3High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical 4High Dose Liquid Quantitative Filling Machine Automatic Pharmaceutical 5
