Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed

Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed
Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed

Large Image :  Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-2/1/1GSX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed

Description
Name: Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed Speed: 40~50bpm
Filling Volume*: 2~10ml Filling Accuracy: ±0.1ml@3ml
Power*: 220V 50/60Hz 1.5kw Compress Air Require: 100L/min, 4~6bar
Machine Size Mm: Length 2500, Width 1200, Height 1500 Warranty:: 1 Year
High Light:

50bpm Eye Drops Filling Machine

,

10ml Eye Drops Filling Machine

,

Cigarette Oil Drop Filling Machine

Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed

Machine Parameters of Eye Drops Filling Machine​



Kind of bottle
Various kind, e.g. round, flat, oval
Bottle size*
Min. Ø 20mm Max. Ø30mm
Speed
40~50bpm
Filling volume*
2~10ml
Filling accuracy
±0.1ml@3ml
Power*
220V 50/60Hz 1.5kw
Compress air require
100L/min, 4~6bar
Machine size mm
Length 2500, width 1200, height 1500
Machine weight:
700kgs



Product Description of Eye Drops Filling Machine



Eyedrop filling, plugging &capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a conveyor, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system.



The bottle loading/unloading is done manually, through loading/unloading turntable Ø620mm, or directly from an production line. It is designed and made accordance to GMP regulation.



Feature  of Eye Drops Filling Machine


1. This series of automatic powder filling machines are especially designed for various glass vials or antibiotics bottles powder packaging with auto filling, stoppering & capping, widely uses as sterile powder filling, cosmetic mask powder filling, oral powder, greatly welcome in foodstuff, biological products and pharmaceutical & cosmetics fields.



2. With servo motor drive & high-precision screw filling, filling speed & precision is high.



3. PLC system to control, easy to adjust different dosages & speed, easy to operate & maintain.



4. Speed control is frequency conversion, with auto counting, highlu auomatation.



5. Optional acrylic glass protection hood and 100-class laminar flow

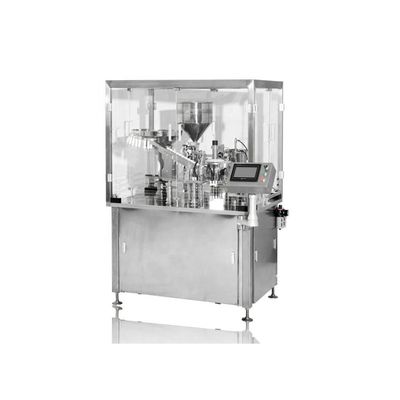

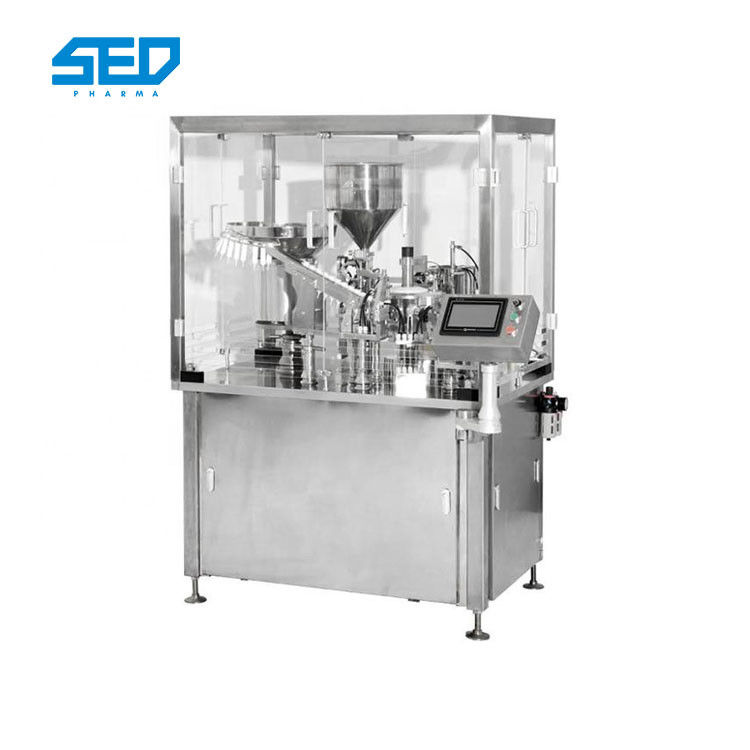

Products Show of Eye Drops Filling Machine

Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed 0

Application of Eye Drops Filling Machine



Automatic Cigarette Oil Eye Drops Filling Machine 50bpm Outlet Speed 1
