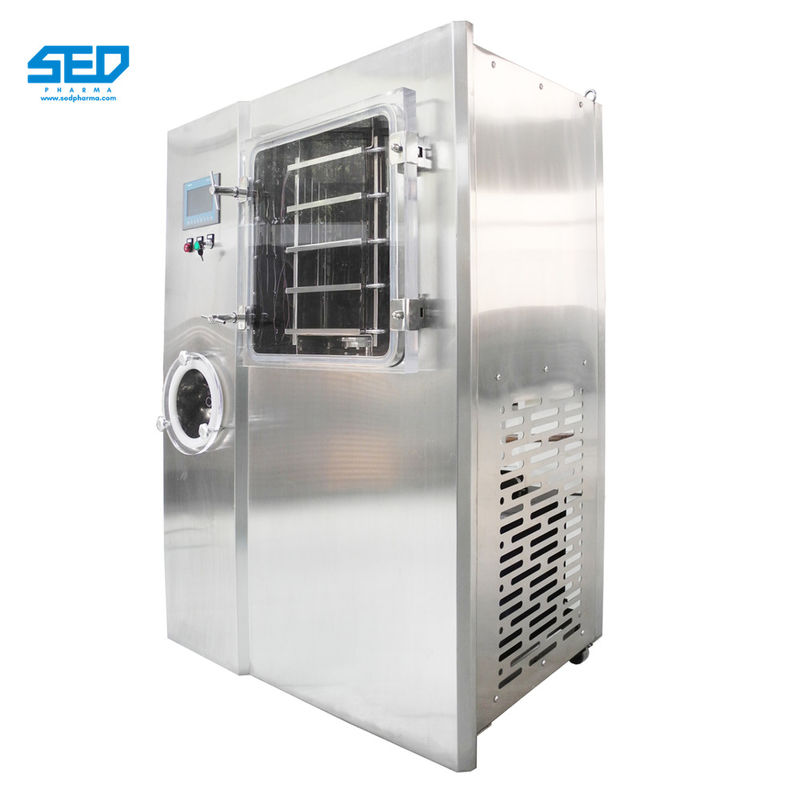

High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled

High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled
High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled

Large Image :  High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-1DG

High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled

Description
Name: High Speed Commercial Vacuum Freeze Drying Machine PLC Touch Screen Controled Cooling Water Qty:: ≥3m3/h(T≤30℃/P=0.15~0.2Mpa)
Defrost Water Quantity:: ≥500kg(T≥30℃,P=0.1-0.2Mpa) Power: 30kw
Drying Capacity (kg):: 10kg Dimension(L*W*H):: 3230x1500x2550mm
Voltage: 380V50Hz Weight: 2000kg
Compressed Air:: ≥40L/min(P=0.5~0.8Mpa) Frozen System: German Bitzer Brand
Material: Stainless Steel Key Word: Freeze Drying Machine
High Light:

PLC Vacuum Freeze Drying Machine

,

Touch Screen Vacuum Freeze Drying Machine

,

380V Vacuum Canning Machine



High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled

Product introduction of Freeze Drying Machine



Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials.



Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.


Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge".



The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease.



Main Parameter of Freeze Drying Machine​

Frozen system
German Bitzer Brand
Vacuum system

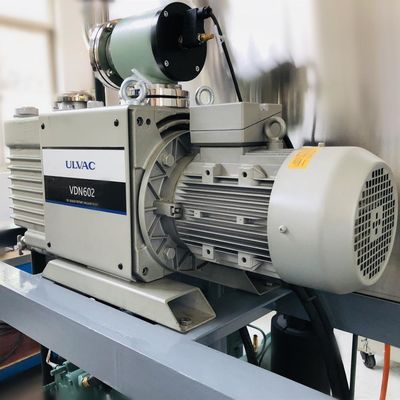

Vacuum pump with Japan Ulvac brandSiemens
Circulation system
Circulation pump with Denmark Grundfos brand
Control system
Touch screen and PLC with Siemens Brand

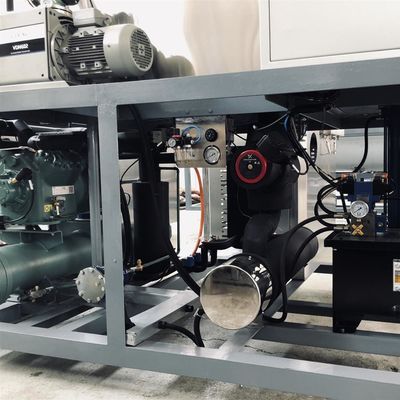

Product Show of Freeze Drying Machine

High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled 0



Application of Freeze Drying Machine​



High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled 1
High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled 2High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled 3High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled 4High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled 5High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled 6
