Product Details:
|
| Name: | Assembly And Packaging 100ml Syringe Filling Equipment | Syringe Volume: | 0.5-100ml |
|---|---|---|---|
| 0.5-100ml: | 0.05-100ml | Filling Accuracy: | 1500-2000 Pcs Per Hour |
| Filling Nozzles: | 0.55-0.75Mpa 20L/S | Outer Dimension:: | 1150*400*1000 Mm |
| Material: | Stainless Steel | Key Word: | Syringe Filling Machine |
| High Light: | assembly packaging syringe filling equipment,100ml Syringe Filling Equipment,100ml syringe filling machines |
||
Assembly And Packaging 100ml Syringe Filling Equipment
Product Parameters of Syringe Filling Machine
|
Syringe volume
|
0.5-100ml
|
|
0.5-100ml
|
0.05-100ml
|
|
Filling volume
|
≤±0.3%
|
|
0.05-100ml
|
1 pc
|
|
Filling accuracy
|
1500-2000 pcs per hour
|
|
≤±0.3%
|
2.1kw
|
|
Filling nozzles
|
0.55-0.75Mpa 20L/S
|
|
1 pc
|
1200×800×1800mm
|
Working Principle of Syringe Filling Machine
This machine consists of syringe tray, filling system, stopper supplying system and electric control system.
The two servo motors control the ceramic pump to set the filling volume. The other two servo motors drive the syringe tray to move in the horizontal direction to fill the syringe and seal it.
Characteristic of Syringe Filling Machine
Servo motor control, filling precision is high, running speed is high, filling error is small.
Ceramic pump filling, without dripping, easy to disassemble and clean.
Horizontal positioning is precise, running is stable, and the change of the syringe tray is easy.
Touch panel operation and plc control, with inter-lock function, relable safety standard and high automation degree.
Ce certified, standard electric installation, safety guarantee on operation.
Equip with acrylic glass protection hood.
Optional 100-class laminar flow
Optional nitrogen, filling and vacuum device
The whole machine is designed according to gmp requirements.
Feature of Syringe Filling Machine
Load a tray by hand and to load syringes tubes automatically and continuously
The needle of syringes are filling and the liquid going up, Be sure the liquid no overflow
Insert plunger with vacuum, be sure the plunger and liquid level closed enough without air.
Syringe machine can inspect by itself, it case accident happen.
The material contact parts are AISI 316Lstainless steel and ceramic
Star wheel type automatic produce and convenient to operate

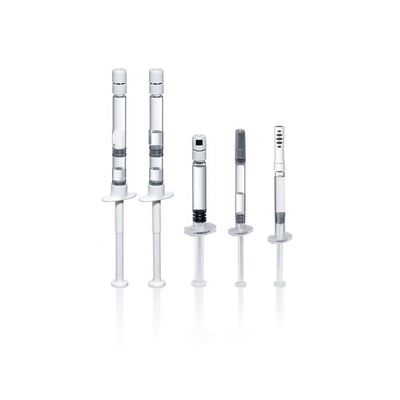

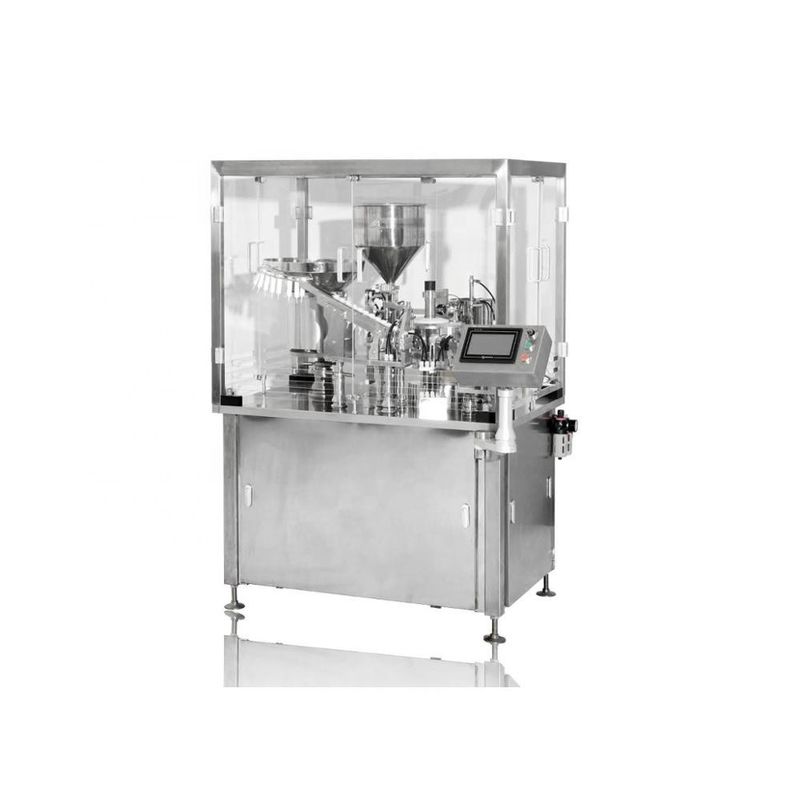

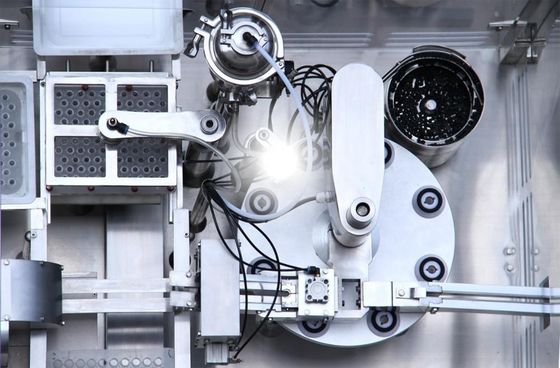

Products Show of Syringe Filling Machine
