Product Details:
|
| Name: | 12000pcs/H CE Cylinder Rotary Tablet Press Machine | Max. Pressure (kn): | 100 |
|---|---|---|---|
| Max. Dia. Of Tablet (mm): | 50 | Max. Depth Of Filling (mm): | 30 |
| Max. Thickness Of Tablet (mm): | 15 Mm | Rotate Speed (r/min): | 10 Rpm |
| Production Capacity (pcs/h): | 10000pcs/h-12000pcs/h | Motor Power (kw): | 5.5kw |
| Outside Size (mm): | 920x890x1540mm | Weight (kg): | 1400 KG |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| High Light: | Cylinder rotary tablet press machine,CE rotary tablet press machine,12000pcs/h rotary tablet press machine |
||
12000pcs/H CE Cylinder Rotary Tablet Press Machine
Product Description of Rotary Tablet Press Machine
This machine is designed for pressing all kinds of granular materials into a round plate, and is suitable for batch production of the basic equipment. Rotary speed, the depth of the filling and tablet thickness can be adjusted.
The mechanical buffer device can avoid the overload and cause damage to the machine. The machine can be another match suction powder box, through the suckers to absorb dust, avoid bonding jams, and recycle raw materials to use.
Product Parameters of Rotary Tablet Press Machine
| Product No. | SED-15Y |
| Quantity of Punch & Die (set) |
15
|
| Max. Pressure (kn) |
100
|
| Max. Dia. of Tablet (mm) |
50
|
| Max. Depth of Filling (mm) |
30
|
| Max. Thickness of Tablet (mm) |
15
|
| Rotate Speed (r/min) |
10
|
| Production Capacity (pcs/h) | 10000-12000 |
| Motor Power (kw) |
5.5
|
Main Features of Rotary Tablet Press Machine
1.The butter unit would prevent punches and apparatus from overload damage.
2.Speed, filling depth and thickness are adjustable.
3.A powder suction unit is attached to machine which to eliminate the powder from machine while working, the collected powder would be reused.

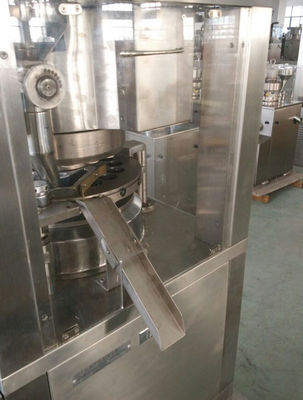

Show of Rotary Tablet Press Machine
Application of Rotary Tablet Press Machine
