Product Details:
|
| Name: | Industrial Vacuum SS304 Freeze Dry Machine For Food Advantage Low Consumption High Efficiency | Usage: | Food And Pharmacuitical Industry |
|---|---|---|---|
| Material: | SS304/SS316L | Cooling Water Qty: | ≥10m3/h(T≤25℃,P=0.2-0.3Mpa) |
| Application Material: | Food Vegetable Fruit | Product Name: | Freeze Drying Equipment |
| Advantage: | Low Consumption High Efficiency | Weight: | 800KG |
| Material: | Stainless Steel | Key Word: | Freeze Dry Machine |
| High Light: | SS304 Freeze Dry Machine,30kw Freeze Dry Machine,30kw industrial food dryer machine |
||
Industrial Vacuum SS304 Freeze Dry Machine For Food Advantage Low Consumption High Efficiency
Product Overview of Freeze Dry Machine
Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials
Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge".
The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.
Product Parameters of Freeze Dry Machine
| Description | SED-3DG Vacuum Freeze Drying Machine |
| Machine suitable for | Food and vegetable drying |
| Power supply | 103Kw, 380V±10%,50HZ,3Phase,5Wire |
| Compressed air | ≥40L/min(P=0.5~0.8Mpa) |
| Cooling water Quantity | ≥30m3/h(T≤30℃,P=0.2-0.3Mpa) |
| Structure | -Integral |
| Whole volume(L×W×H) | 6000mm×2300mm×2600mm Final dimension based on design |
| Weight | 10T (Approx) |

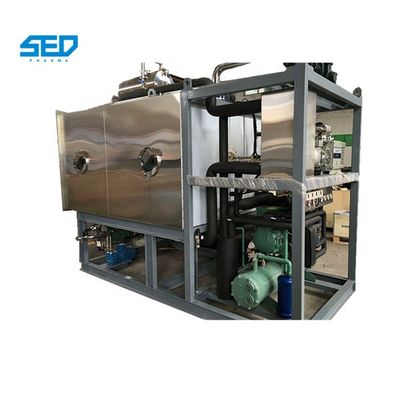

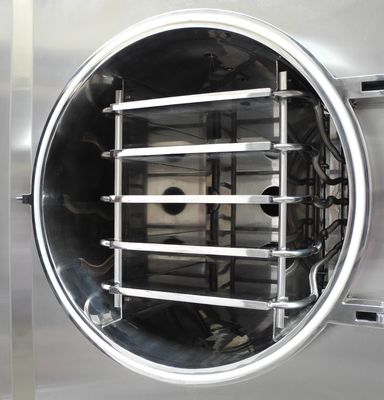

Show of Freeze Dry Machine
Application of Freeze Dry Machine
♦ Vegetables: edible mushrooms, garlic slices, green onions, green beans, peas, cucumbers, sweet corn kernels, carrots, spinach, asparagus, wild vegetables, etc.
♦ Aquatic products and meat: shellfish, shrimp, fish sticks, beef, pork, chicken, lamb, etc.
♦ Seasoning: garlic powder, ginger powder, onion powder, tomatoes, pepper.
♦ Instant drinks: coffee, tea, soup, soy milk, milk, etc.
♦ Convenience food: children's food, snack food, military food
♦ Fresh Chinese herbal medicine: ginseng, velvet antler, wolfberry, Panax notoginseng, etc.
