Product Details:
|
| Name: | SED-1200J 70000 Capsules Hour Automated 000 Powder Capsule Filling Machine Filling Accuracy 99.7 % | Weight (KG): | 1000 Kg |
|---|---|---|---|
| Capacity (Capsule/min): | 500 - 1100 | Filling Accuracy(%): | 99.7 % |
| Vacuum Pump Type: | Dry | Warranty: | 1 YEAR |
| Material: | Stainless Steel | Key Word: | Powder Capsule Filling Machine Automatic Capsule Filling Machine |
| High Light: | 5.5kw Powder Capsule Filling Machine,000 Powder Capsule Filling Machine,70000 Capsules / Hour Capsule Filling Machine |
||

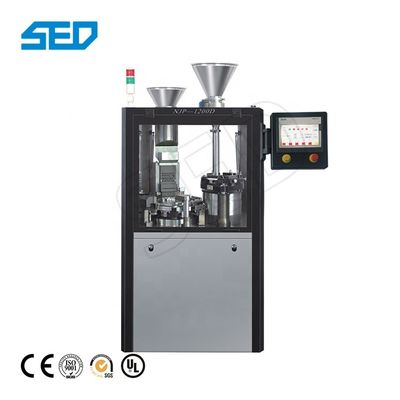

Product Overview of Powder Capsule Filler

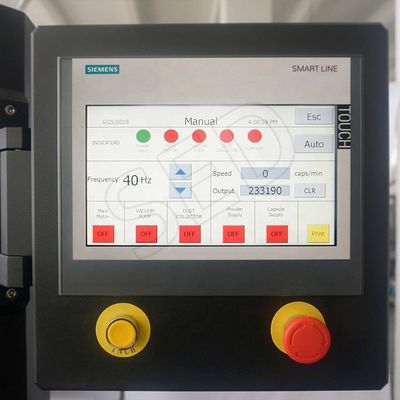

Fully automatic hard capsule filling machine is a new generation machine, with man-machine interface, PLC, sound seal, variable frequency stepless speed regulation, simple operation, high capsule filling rate, accurate dosage, low energy consumption, high output, product Standardized and serialized.
The main technical parameters are leading domestically. With molds of different specifications, it can fill hard capsules from No. 00 to No. 5 and safety capsules A, B, C, D, E. It can realize both slow-release granule filling and powder-granule mixing filling. SED-1200J is a new generation capsule filling machine of our company, with high filling dose accuracy and convenient cleaning and maintenance.
The entire set of molds and all parts that require daily cleaning and maintenance are equipped with positioning pins.
| Product Name | Fully Automatic Capsule filling machine |
| Product model | SED-1200J |
| Machine output | 70000 capsules / hour |
| Filling Precision | Powder, granule, pellet, tablet |
| Suitable capsule | ±3% |
| Suitable capsule | 000,00,0,1,2,3,4,5# |
| Applicable materials | Powder, granule, pellet, tablet |
| Rated voltage | 220V 50HZ |
| Rated power | 5.5KW |
| Host weight | 1000Kg |
| Outline size |
1100×910×2100mm |
Feature of Powder Capsule Filler
1). Good looking appearance, exquisite workmanship, ease of operation, simplicity of use.
2). Stowage seat and dosage tray are designed as on unit to make dosage tray and stowage rod without deviation phenomenon, avoid friction phenomenon between stowage rod and dosage tray, improve its precision highly, furthermore, it delays the machine’s use life greatly.
3). In allusion to sticky or fluidity powder cause bad filling effect, in the dosage tray designed a powder scraper to improve the precision of filling.
4). Other device designed to avoid disqualified capsules get into mould caused by sticky powder, and this improves rate of finished products.
5). Ineligible capsule can be eliminated automatically, the medicine in the capsule can be recycled and reused, thus it can increase economic benefit greatly.
6). Simplicity and convenience of dismantling, installation and clean, various models of mould can be replace each other, the mould of 800, 1000, 1200 can be interchange on the same machine to meet different requirement of capacity.
7). Dust collector and vacuum pipe as well as waste air pipe are installed in the inner of the machine, avoid the air pipe becoming hard, broken or leakage etc phenomenon, it is more convenient to clean the platform. Furthermore, it accords GMP requirement.
8). The cap of stowage rod is made of stainless steel to replace original plastic cap to avoid breaking phenomenon; on the other hand, the screws and caps on the platform lesser to make the whole appearance more good looking.
9). Suitable for domestic capsules, its filling ration no less than 99%.
10). The main spare parts such as starting shaft, cam etc are adopted the imported materials.
Application of Powder Capsule Filler
