Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control
Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-250P
High Light:

packaging automation equipment

,

automatic bagging machine

Payment & Shipping Terms
Payment Terms: T/T,L/C, MoneyGram,Cash
Specifications
Productivity: 20 To 40pcs/min
Filling Volume: 8 To 250ml (customized)
Tube Diameter: 16 To 50mm (customized)
Tube Length: 50 To 200mm (customized)
Filling Accuracy: ±1%
Max Power: 2.2KW
Air Pressure: 0.6Mpa
Machine Weight: About 400KG
Product Description

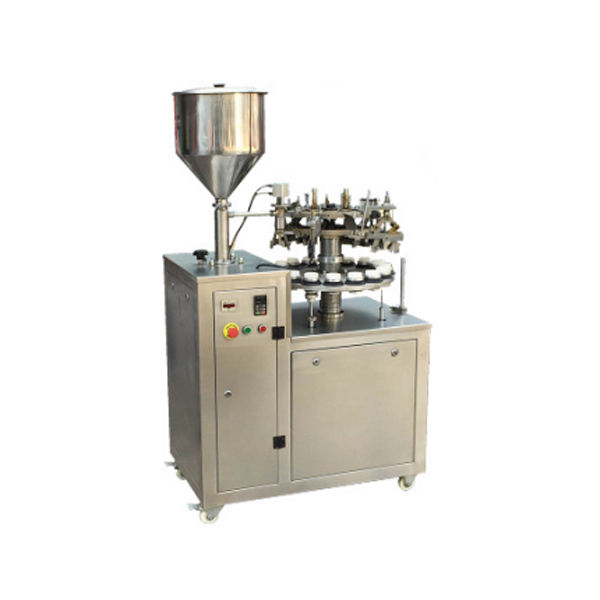

Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control 0



main parameter



Productivity 20 to 40pcs/min
Filling Volume 8 to 250ml (customized)
Tube Diameter 16 to 50mm (customized)
Tube Length 50 to 200mm (customized)
Filling Accuracy ±1%
Max Power 2.2KW
Air Pressure 0.6Mpa
Machine Weight About 400KG
Dimension (L*W*H) 1700*1020*1200MM



Product description



HTGF-50 Semi Automatic Tube Filling Sealing Machine uses rotary piston way, filling precision, using light point control, heated sealing all work with high precision cylinder full stroke control, easy to adjust filling volume, the filling speed can be adjusted.



It applies to all kinds of composite tubes, plastic pipe and metal pipe filling and sealing, date printing, cut the tail.Sealing neat appearance, sealing strong, high accuracy, good stability.



According to the different material properties, Optional ingredients bucket heating system, anti-leak filling head, Machine adopts imported PLC control, import the original frequency control, pneumatic components using (AIRTAC), import original (SICK) photoelectric sensors, high stability, imported hot air flow meter and the formation of hot air heating system.



main features



1. Host with frequency control.



2. Color positioning, selection of German, while accompanied by a high-precision drives and stepper motor (very high requirements on the standard configuration Servomotor), to ensure the correct position graphics.



3. Anti-leak filling nozzle deep into inside of hose, while there is a bottom-up filling process is complete when filling and sealing, no leakage or overflow. Machine is suitable for a variety of different physical and chemical properties of the filling material requirements.



Filling volume fine hand wheel placed in the external body, tight regulation and very convenient to ensure filling accuracy ≤± 1%, cost savings and truly accurate measurement.



4. The structure is compact, self-control, transmission closed.



5. Easy to change tube holder for different tube diameter.



6. Material contact parts made of 316 stainless steel, clean, sanitary, in full compliance with the requirements of GMP.



7. The machine speed by inverter control can be adjustable.



8. Height can be adjusted directly and conveniently for different tubes.



9. Filling volume can be adjustable by double cylinder, easy to adjustable.



10. Equipped with safety devices, door stop, no tube no filling, overload protection.



11. No filling leak, the air blow-off device blew cream tail. (This is our patent)



12. Sealing temperature use (Leister hot air gun) tail pipe internal heating, cooling External cooling device configuration.

Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control 1Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control 2Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control 3Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control 4Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control 5Ultrasonic Plastic Hose Filling Sealing Packing Machine 0.6Mpa Air Pressure Self-Control 6
