Product Details:
|
| Name: | SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG | Shelf Area: | 5.2 M2 |
|---|---|---|---|
| Input Capacity: | 50 Kg | Shelf Number: | 7+1 Layers |
| Shelf Size: | 750*1000 Mm | Shelf Spacing: | 80mm |
| Installation Rate: | 23.5KW | External Dimension (L*W*H): | 4000*1500*2500mm |
| Material: | Stainless Steel | Key Word: | Freeze Dry Machine |
| High Light: | freeze drying equipment,freeze dryer lyophilizer |
||
SED-3M Shelf Number 7+1 Layers Small Scale Box Type Freeze Dry Machine Vacuum Laboratory Lyophilizer Total Weight 3500KG
Product Overview of Freeze Dry Machine
series vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production.
Product Parameters of Freeze Dry Machine
| specification | unit | GZL-5 |
| shelf area | m2 | 5.2 |
| input capacity | kg | 50 |
| shelf number | layers | 7+1 |
| shelf size | mm | 750*1000 |
| shelf spacing | mm | 80 |
| trolley number | set | - |
| temp.control range | ℃ | -50 -+80 |
| ice condensing capacity | Kg/batch | ≥100 |
| condensr temp.(no loading ) | ℃ | ≤-75 |
| cooling method | - | water cooling |
| defrosting | - | soaking |
| final vacuum (no loading ) | Pa | ≤5 |
| installation rate | KW | 23.5 |
| cooling water | m3/h | 10 |
| external dimension (L*W*H) | mm | 4000*1500*2500 |
| total weight | KG | 3500 |
Feature of Freeze Dry Machine
1. Shelf freeze dryer ,silicon oil as medium to heat conductor,temperature uniform.
2. Square tray is not easily deformed, easy to operate, easy to clean;
3. Can be configured inflation valve, disposable dry inert gas;
4. With vacuum seal; the LCD: disply shelf temperature and cold trap curve.
5. SJIA PLC controller special designed for freeze dryer, 20 programs, each program can be divided into 40 sections of programmin
6. Freeze dryer program parameters can be modified during operation,and record the final drying curves;
7. USB on line function, export curve data to U disk (Optional)
8. Computer remote on line function (Optional)

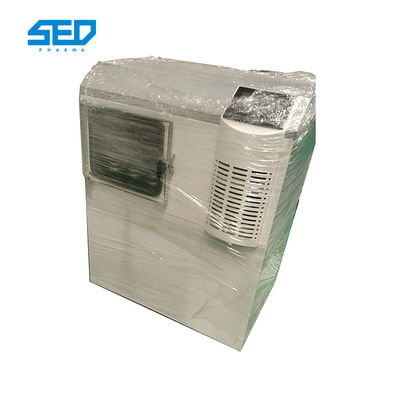

Show of Freeze Dry Machine
