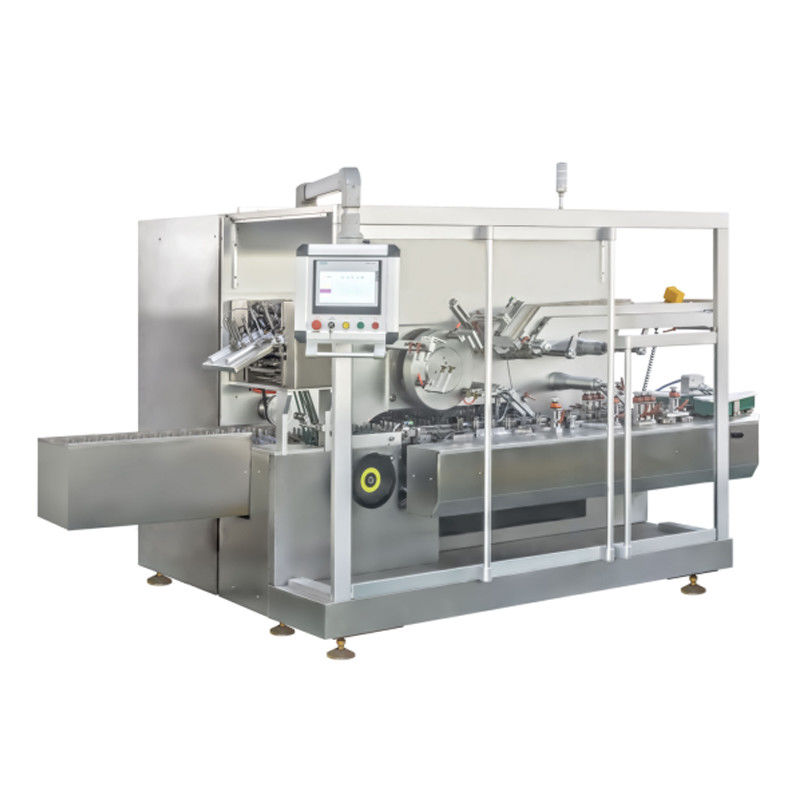

Tissue Carton Fast Speed Automatic Cartoning Machine Packaging Line Low Noise

Product Details:
Place of Origin: China
Brand Name: SED-Pharma
Certification: CE
Model Number: GS650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 35 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month
Contact Now

Detail Information

Encasing Speed: 50-70box/min Working Pressure: >=0.6mpa
Air Consumption: 20m3/h Power Supply: 380V 50Hz
Motor Power: 1.5KW Machine Dimension (L×w×H): 4200*1450*1900mm
High Light:

auto cartoner machine

,

vertical cartoning machine

Product Description

Tissue carton high speed cartoning machine Packaging line Non-standard



Product description

This cartoning machine is a model that our company has innovated and designed on the basis of introducing foreign advanced technology, and strictly manufactures according to the "GMP" requirements of the pharmaceutical industry. High-efficiency, high-performance production capacity, leaflet folding and conveying, carton erecting, and rear pushing mechanism technology meet European and American standards; compact design and rear continuous pushing structure make operation and maintenance easier The quartering double planetary gear rotates outwardly to open the box and has two preforming devices to ensure complete expansion of the carton.

This machine is a fully automatic continuous high-speed cartoning machine, which integrates mechanic, photoelectric and pneumatic. It is suitable for automatic production of aluminum-plastic blister board, bottle, hose, soft double aluminum and bag-like items. It can be connected to a packaging production line.

Open box mechanism: This mechanism adopts quartering double planetary gear rotating outwardly to open the boxes. The advantage of this way comparing to the inward movement with similar models from other companies is that it will not collide with each other when the paper tray size is wide. This mechanism also has two carton preforming devices to ensure that the carton is fully erected.



main features

  • Touch Screen HMI controls
  • PLC programme
  • JAPAN OMRON electric parts (inverter, PLC,touch screen...)
  • GERMANY SICK photocell
  • Vacuum assisted pre-break
  • different sizes are available in one machine within machine size range
  • without product, carton will be not sucked down
  • Auto display trouble, alarm and count finished product
  • Overload protection



technical parameter

Encasing Speed 50-70box/min
Box Quality requirement 250-450g/m2
(according to its dimension to confirm)
Dimension range
(L×W×H)
(70-250)mm×(50-120)mm×(20-90)mm
can customize according to your requirement
Compressed air Working pressure >=0.6mpa
Air consumption 20m3/h
Power supply 380V 50Hz
Motor power 1.5KW
Machine dimension
(L×w×H)
4200*1450*1900mm
Machine weight 1500KGS
