Pharmaceutical Tablet Press Machinery Rotary Tablet Machine For Round Tablet

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-21
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month
Contact Now

Detail Information

Model: SED-21 Max. Filling Depth: 15mm
Max. Tablet Thickness: 6mm Dimension(L×W×H): 1230×950×1670mm
High Light:

tablet press equipment

,

pill press machine

Product Description



Pharmaceutical rotary tablet press machinery for round tablet





product description

Tablet Press Machine is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.

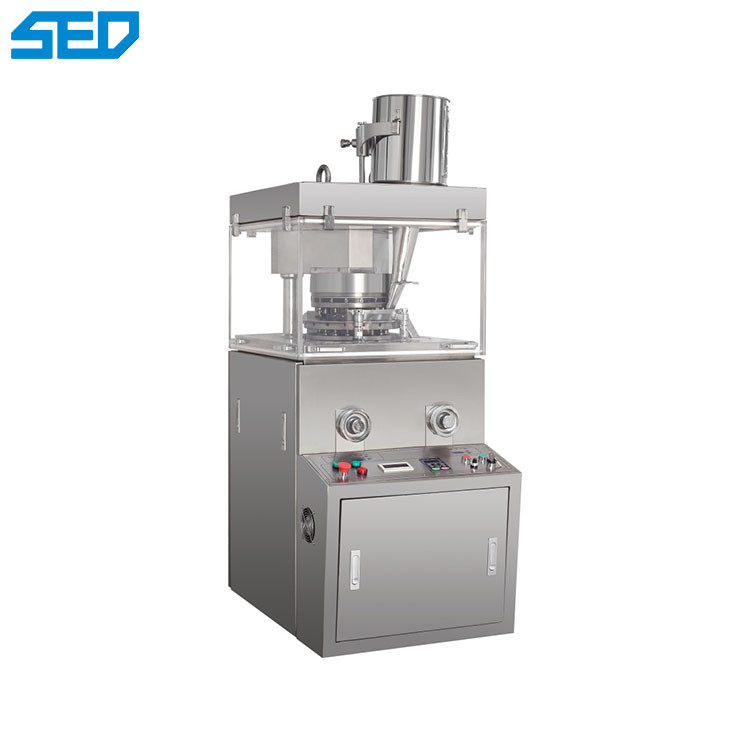

Pharmaceutical Tablet Press Machinery Rotary Tablet Machine For Round Tablet 0

trait

1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust



detailed parameters

Stations (unit) 31 Thickness of the die (mm) 22
Maximum compression (KN) 80 The diameter of the circle of the central pitch of upper &lower punches on the turret 320mm
Max. Diameter of tablet to be produced (mm) 25 Rotary speed of the turret (rpm) 14-35
Max. Filling depth (mm) 20 Capacity of the tablets 60,000-100,000pcs
Max. Thickness of tablet (mm) 12 Area to occupy (mm2 ) 2230x2250

Pharmaceutical Tablet Press Machinery Rotary Tablet Machine For Round Tablet 1Pharmaceutical Tablet Press Machinery Rotary Tablet Machine For Round Tablet 2Pharmaceutical Tablet Press Machinery Rotary Tablet Machine For Round Tablet 3Pharmaceutical Tablet Press Machinery Rotary Tablet Machine For Round Tablet 4Pharmaceutical Tablet Press Machinery Rotary Tablet Machine For Round Tablet 5
