|Model:||SED-JB350D||Production Capacity (kg/batch):||350|
|Speed-adjusting Range Of Filmcoating Drum (rpm):||2-11||Motor Power Of Main Machine (kW):||4|
|Noise:||≤ 75dB||Overall Dimension Of Main Machine (mm):||2000× 1560× 2330|
|Weight Of Main Machine (kg):||1700||Weight Of Air Heater (kg):||700|

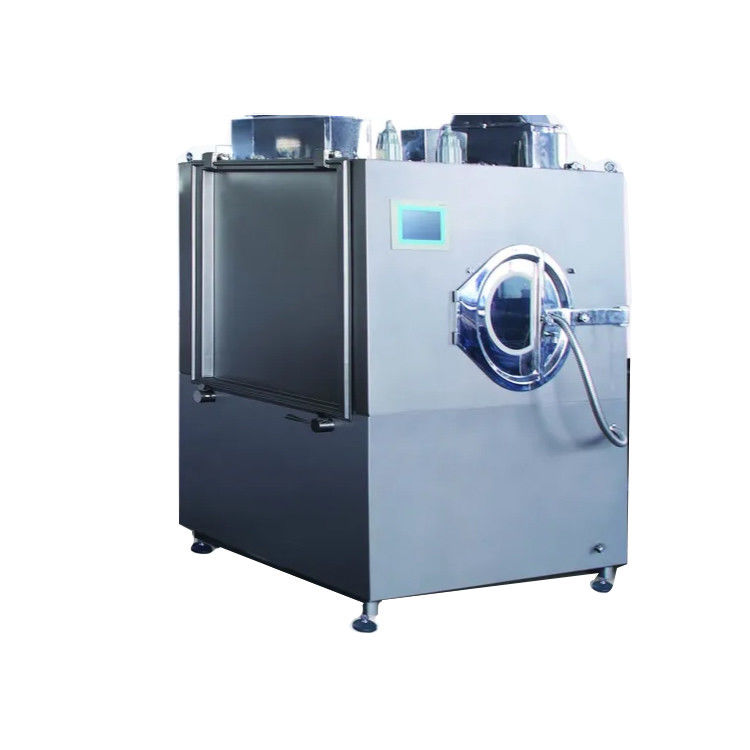

high-capacity medical tablets Thin film High efficiency sugarcoating machine
Tablet Sugar Candy Film Coater/Coating Machine Machinery
1. Different parts of the main machine collocated with a number of nozzles for cleaning machine on-line.
2. Configured the independent cleaning liquid booster distribution station to make sure the pressure of cleaning liquid form every spray header get up to 0.6Mpa and wash the coating machine effectively.
3. Configured the cycle cleaning and drainage systems for the cleaning process to choose
4. Under the control of the PLC, can program a number of cleaning procedures
5. Under the control of the PLC, dry the remanent water of each nozzle by compressed air.
6. Under the control of the PLC, implement fully automatic washing and drying process.
Main technical parameters of BGB-D type coating machine (with CIP).
|Production capacity (kg/batch)||350|
|Speed-adjusting range of filmcoating drum (rpm)||2-11|
|Motor power of main machine (kW)||4|
|Temperature-regulating range of hot air (° C )||Normal temperature 90 ° C|
|Filtration accuracy of hot air ( mm)||0.5 mm (100000 grade)|
|Motor power of air heater (kW)||2.2|
|Motor power of exhaust machine (kW)||7.5|
|Motor power of peristaltic pump (kW)||0.18|
|Overall dimension of main machine (mm)||2000× 1560× 2330|
|Weight of main machine (kg)||1700|
|Overall dimension of air heater (mm)||1610× 1090× 2370|
|Weight of air heater (kg)||700|
|Overall dimension of exhaust machine (mm)||1050× 1000× 2100|
|Weight of exhaust machine (kg)||550|
