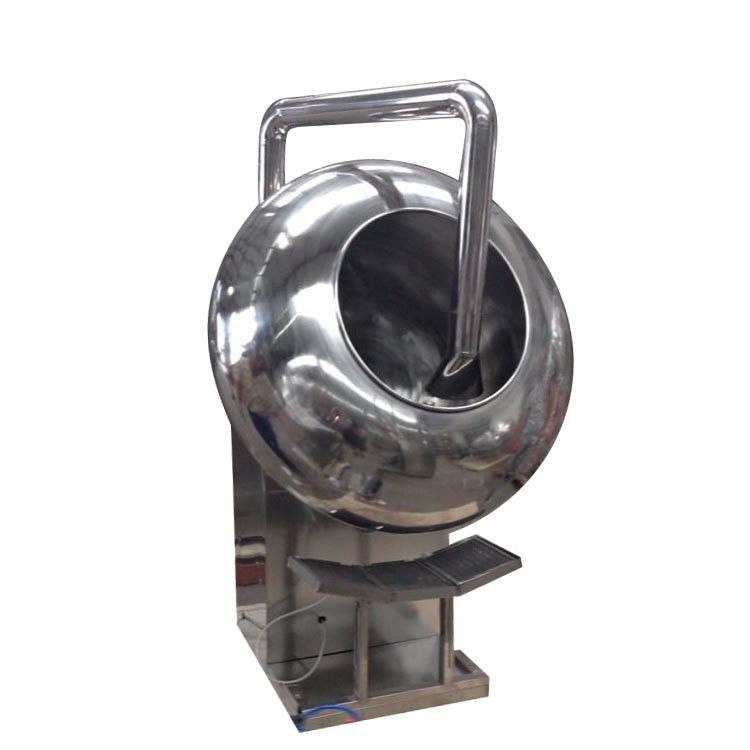

Stainless Steel White Sugar Sugar Film Coating Machine With Stable Running

China Stainless Steel White Sugar Sugar Film Coating Machine With Stable Running supplier
Stainless Steel White Sugar Sugar Film Coating Machine With Stable Running supplier Stainless Steel White Sugar Sugar Film Coating Machine With Stable Running supplier Stainless Steel White Sugar Sugar Film Coating Machine With Stable Running supplier

Large Image :  Stainless Steel White Sugar Sugar Film Coating Machine With Stable Running

Product Details:

Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-JB600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 Days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash
Supply Ability: 30 Sets per month
Contact Now
Detailed Product Description
Model: SED-JB600 Dia. Of Pan ( Mm): 600
Rotary Speed Of Pan ( R/min): 46 Power Of Fan( Kw): 0.075
Power Of Heat Kw: 1 Production Capacity( Kg/time): 15
Motor( Kw): 0.75 Overall Size ( Mm): 930*800*1000

minitype Thin film sugarcoating machine



product description

These machines sugar coat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds.



trait

1. Made of stainless steel, stable running, low noise and high efficiency.

2,The final product is round and smooth.

3,It is also suitable for peanut, popcorn, almond, cashews, soybeans and so on.

4,The inclination angle of the sugarcoating pot can be adjusted.



detailed parameters

Model SED-JB300 SED-JB400 SED-JB600 SED-JB800 SED-JB1000
Dia. of Pan ( mm) 300 400 600 800 1000
Rotary Speed of Pan ( r/min) 46 46 46 36 32
Power of Fan( kw) 0.075 0.075 0.075 0.12 0.12
Power of Heat kw 0.75 0.75 1 2 2
Production Capacity( kg/time) 2 5 15 36-50 45-70
Motor( kw) 0.37 0.55 0.75 1.1 1.1
Overall Size ( mm) 520*360*700 540*400*800 930*800*1000 1000*800*1480 1070*1000*1580
Net Weight( kg) 46 52 120 205 230
