Product Details:
|
| Model: | SED-32S | Item Name: | 32 Channel Tablet Capsule Counting Machine Automatic Stainless Steel |
|---|---|---|---|
| Hopper Volume: | 90L | Material: | Stainless Steel |
| Bottle Size: | Diameter: ≤50mm Height:40-180mm | Filling Quantity: | 2-9999 Pcs/bottle(adjustable) |
| Counting Speed: | 10-120 Bottles Per Minute | Power: | 220V/50HZ 1.3KW |
| High Light: | electronic pill counter,tablet counting device,32Channel Tablet Counting Device |
||
32 Channel Tablet Counting Device , Automatic Electronic Capsule Counter Stainless Steel
Main Features:
1. Widely applicable, used for tablets (including special shaped tablets), capsules,gels (including special shaped gels, transparent gels and opaque gels) pills and most solid granules.
2. Patent: Bottle separation and switching device, will not damage the pills.
3. Anti-dust, equipped anti-dust sensor technology. Highly stable in heavy dusty situation, works with accuracy.
4. Proprietary right technology for anti-disturbance: The counting signal will be deal in special advanced way, and communicate with the control system in high-speed and avoid any kind of disturbance.
5. Patent: Half vibration-filling hopper, to avoid pills from getting jammed.Especially for the smaller mouth bottle conditions.
Technical Parameters:
| Item | SED-32S |
|
Application |
other solid object under machine range |
|
Capacity |
10-120bottles(30-100 pcs/bottle)/min |
| Working Range | Adjustable from 2-9999 per bottle |
| Power supply and consumption | 220V/50HZ 1.3kw |
| Size | 2160*1530*1700mm |
|
Hopper Volume |
90L |
|
Bottle Size |
Diameter: ≤50mm Height:40-180mm |
|
Counting Size |
Pills with diameter of 22mm or less are compatible with 000-5# capsules soft capsules with diameters of 3.5mm-22mm plain tablets special-shaped tablets sugar-coated tablets |
|
Compressed air |
0.6Mpa 5L/min |
| Weight | 710kg |
Working Principle :
The bottle blocking of bottle feeding mechanism‘s track stand bottle filling position and wait fill from the last equipment.Drugs through the corrugated plate vibration,orderly into drug storehouse.
And the drug storehouse is equipped with photoelectric sensors,the drug fall into the drug storehouse were putted into bottle by photoelectric sensor quantitative count.

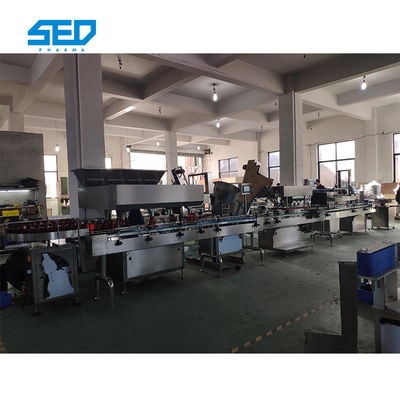

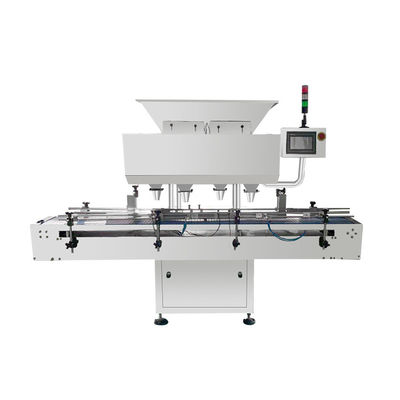

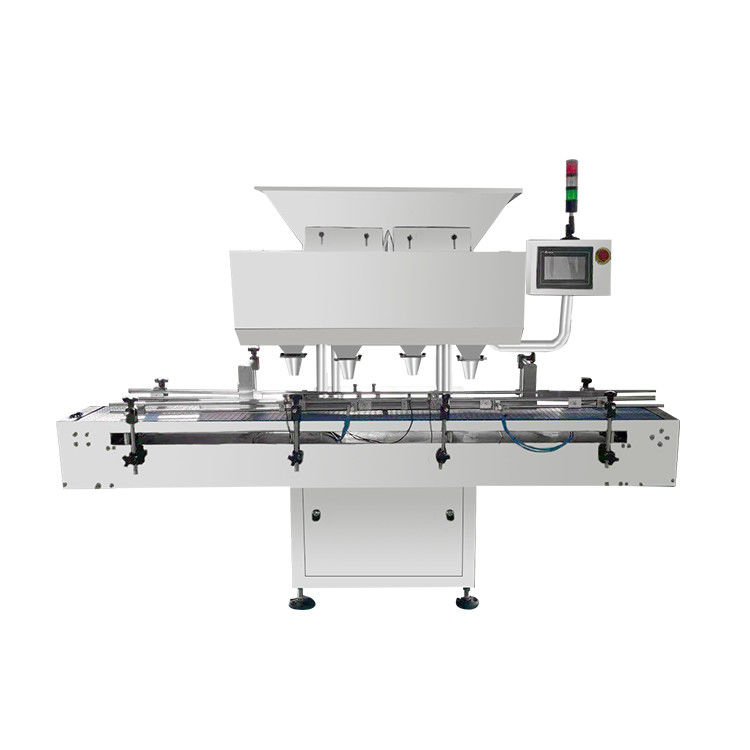

Machine Detailed Picture:
