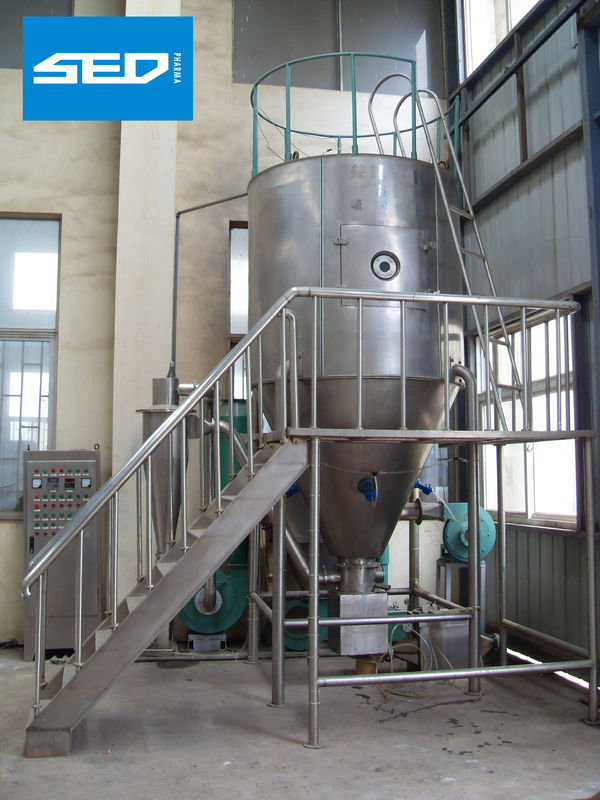

High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine

High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine
High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine

Large Image :  High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-20PG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine

Description
Name: High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine Revolution Of Atomizer: 22000rpm
Diameter Of Atomizing Disc: 60mm Dried Powder Recovery Rate: Around≥95%
Length Of Covered Area: 4m Width Of Covered Area: 2.7m
Hoisting Height Of Nozzle: 2.5m E-Heating Power: 31.5kw
Material: Stainless Steel Key Word: Centrifugal Spray Drying Machine
High Light:

fluid bed dryer machine

,

fluid bed dryer granulator

High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine



Product Description of Sprying Drying Machine​

LPG series Spray drying Machine is a technology most widely used in the liquid technology shaping and in the drying industry.


The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Atomizer is the most important accessory in spray drying machine, it is used for changing LIQUID status into SPRAY status at a high speed rotation motions, usually can reach 18000~25000 rpm

Product Parameters of Sprying Drying Machine

ItemParameter
Method of AtomizingHigh Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available)
Air input Temp140~300℃
Air output Temp70~90℃
Water Evaporation20kg/h
Revolution of atomizer(rpm)22000
Diameter of Atomizing disc (mm)60
Dried Powder Recovery Rate (%)Around≥95
Length of Covered Area(m)4
Width of Covered Area(m)2.7
Hoisting height of Nozzle(m)2.5
Tower Height4500mm
E-Heating Power31.5kw
Notes: The evaporated amount of moisture is contingent upon the characteristics of the raw material, solid content and temperature of hot air at inlet and outlet. Customers can choose the heating method according to the conditions of the local energy source.






Feature of Sprying Drying Machine



  • High speed drying. The surface area of Raw Material liquid increased a lot after atomization through nebulizer, 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.​



  • Adopts Single position spray drying to make the liquid drop and hot air running in same position. Although the temperature of the air is high, the hot air contacts Liquid Drop once come into drying tank. So the temperature decreased at once to protect the material out of over heated. This is machine is also fit for the materials which are sensitive with Heating.



  • The machine is Simple production with easy operation control system used for drying 50-80% moisture contained materials, even some special material with 90% moisture contained can be dried in a flash to powder. Most of the materials no need to be pulverized or sieved again after dried.



  • All contact parts are made in SS304. for easy checking and operating purpose, all of the controllers and lights are equipped in one controller.

Working Process of Sprying Drying Machine

The air is through the filter and heater, the air distributor which enters the dedicator top, the hot air takes the form of spiral and enters the dedicator evenly.

The material liquid , from the material liquid trough from the at odds with the community or the leadership atomizer for the dedicator top of pump sending through the filter, make the material liquid gush out into an extremely small calorific drop, material liquid and hot air flow and keep in touch, moisture evaporate rapidly, within extremely short time dry to become finished product, finished product discharge by dry tower bottom and whirlwind separator, the waste gas is discharged by the air blower.

Products Show of Sprying Drying Machine

High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 0

Application of Sprying Drying Machine​


     High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 1  High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 2  High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 3
High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 4High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 5High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 6High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 7High Speed Pharmaceutical Dryers Stainless Steel Centrifugal Spray Drying Machine 8
