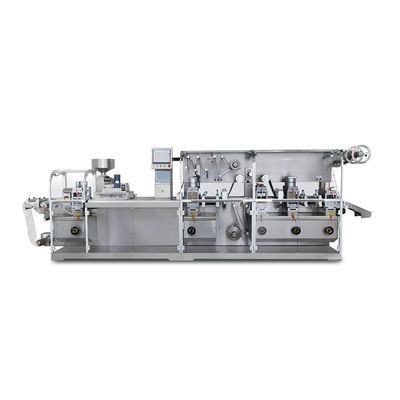

Tropical Aluminum Automatic ALU-PVC Blister Packaging Equipment
Product Overview of Blister Packing Machine
This machine is mounted up tropical aluminum forming and sealing work stations base on SED-270TP-B blister packing machine to enhance the sealing performance and moisture proof and light shunning of product, improve its level. It’s suitable for packing assorted products in pharmaceutical, medicine, food, and nutraceutical industries.
Product Parameters of Blister Packing Machine
| 1 |
Punch frequency |
10-35 circles/minute |
| 2 |
Max.capacity |
140 blisters/minute(standard 80×57mm ,4 blisters/circle) |
| 3 |
Forming area |
Max.:260×110(mm2) |
| 4 |
Stroke |
Standard 20—120mm,non standard Max stroke 160mm |
| 5 |
Blister specification |
standard:80×57mm
reference specification:80×57 95×65 103×43 120×43
|
| 6 |
Capsule Number per blister |
Capsule :10 pcs(#0,#1)12pcs(#1,#2,#3)
Irregular product:special design
|
| 7 |
Packing material |
Non toxic PVC hard piece 0.15—0.5mm×270mm
Adhesive PTP aluminum foil 0.02—0.035mm×270mm
Tropical aluminum 0.09—0.15mm×270mm
Cool form aluminum foil 0.13-0.015mm×270mm
Aperture average 70—76mm
|
| 8 |
Heating consumption |
Form heating:1.5KW
sealing :1.5KW
|
| 9 |
Power |
380V/50Hz 10KW |
| 10 |
Main motor |
100L1-4(2.2KW) |
| 11 |
Air pump capacity |
>0.2m3/min pressure:0.6—0.8Mpa |
| 12 |
Mould cooling |
Running water or cycle water consumption 60L/h |
| 13 |
Working platform |
1400mm |
| 14 |
Dimension |
5360mm×850mm×1750mm(L×W×H) |
| 15 |
Weight |
4000kg |
Feature of Blister Packing Machine
1) The mold adopts T-slot guide and push-in, adjustable handle and quick lock.It is tight and does not require any tools such as a wrench. It can be completed including forming, heat sealing, batch number, indentation, and die complete set of molds within 15 minutes, and automatically align the parallelism between the molds, without need to be adjusted.
2) The cam of each station is based on the guide rail, and the distance of each station is adjusted by the lathe with a handwheel. A positioner and a ruler display the adjusted position and length.
One handwheel of the inflatable shaft corresponds to one workstation mold base, and the distance between each workstation can be adjusted arbitrarily by rotating the handwheel. There is a stainless steel plug-in guard board between the mold bases of each workstation.
3) Main electrical appliances adopt Siemens brand
4) Fully enclosed and partitioned (operating area and turning area) structure prevents dirt and medicine from falling into the rotating parts of the machine; the guide rail body adopts a cantilever structure to make the machine hang in the air. Clean up and clean up.
5) The main motor and main mechanical rotating mechanism are rear-mounted
The main motor is installed behind the fuselage for easy maintenance and easy cleaning. Synchronous belt drive replaces chain drive to reduce oil pollution and noise. The cam action drive of each station still adopts a one-axis rotation structure to ensure the synchronization of each station.
Application of Blister Packing Machine
