Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet

Certification
China Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certification
China Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certification
Customer Reviews
 I would like to thank you for all your efforts to choose the correct atomizer for our spray dryer,High speed drying. The surface area of Raw Material liquid increased a lot after atomization through nebulizer, 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.

—— Fatih BÜYÜKEGEN

I really don't know how to thank you, you are my angel, Thank you very much. Super Fine Pulverizing this one is faster than other same power machine and is easy to operate and repaired.

——  Hamid Doroudian

I'm Online Chat Now

Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet

Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet
Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet

Large Image :  Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-100WZH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets Per Month

Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet

Description
Name: Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet Unfolded Leaflet Specification: (80-250)mm×(90-170)mm
Folded Leaflet Specification: (90-170)mm×(25-40)mm Working Pressure: ≥0.6Mpa
Air Consumption: 120-160L/min Carton Quality Requirement: 300-350g/m2
Encasing Speed: 30-120 Boxes/min Suitable Carton Size: (65-120)mm×(30-60)mm×(30-60)mm
Material: Stainless Steel Key Word: Automatic Cartoning Machine
High Light:

auto cartoner machine

,

vertical cartoning machine

Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet



 Product Technical Data of Automatic Cartoner

Item Parameters
Encasing speed 30-100 boxes /min
Box Quality requirement 250-350g/m2[Base on carton size]
Dimension range(L×W×H) (70-180)mm×(35-85)mm×(14-50)mm
Leafle Quality requirement 60-70g/m2
Unfolded leaflet specification (80-250)mm×(90-170)mm
Fold range [1-4]Fold
Compressed air Working pressure ≥0.6mpa
Air consumption 120-160L/min
Power supply 220V 50HZ
Main motor power 0.75kw
Machine dimension(L×W×H) 3100mm×1100mm×1550mm
Machine weight

1400kg



Features of Automatic Cartoner



1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2. Adopt human-machine operation system.

3. Automatically stop when machine is overload.

4. Automatically reject lacking of package product and leaflet.

5. Automatically display trouble, Alarm and count finished products.

6. Stable performance,operation is easy.



Application of Automatic Cartoner



This equipment is new model developping base on integrated domestic and foreign vanguard technology .


It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.


This machine is suitable for sachet,pouch,soft al/al strips, wound plaster ,ointment plaster, facial mask plaster,coffee bag into carton.



On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.

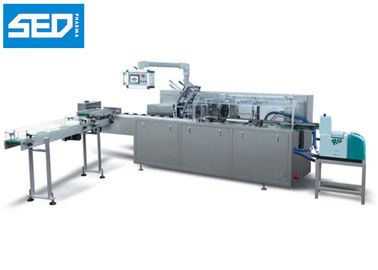

Show of Automatic Cartoner​
Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet 0

Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet 1



Application of Auto Cartoner Machine



Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet 2

Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet 3Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet 4Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet 5Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet 6Running Steady Fast PLC Touch Screen Glue Sealing Type Automatic Cartoner For Sachet 7
