High Speed Automatic Electronic Capsule Bottling Production Line CE Certified

China High Speed Automatic Electronic Capsule Bottling Production Line CE Certified supplier
High Speed Automatic Electronic Capsule Bottling Production Line CE Certified supplier High Speed Automatic Electronic Capsule Bottling Production Line CE Certified supplier High Speed Automatic Electronic Capsule Bottling Production Line CE Certified supplier High Speed Automatic Electronic Capsule Bottling Production Line CE Certified supplier

Large Image :  High Speed Automatic Electronic Capsule Bottling Production Line CE Certified

Product Details:

Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-32SX

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 days after receiving the deposit
Payment Terms: T/T,L/C,Western Union, MoneyGram,Cash
Supply Ability: 30 Sets Per Month
Contact Now
Detailed Product Description
Name: Bottle Counting Line Bottle Unscrambler: High Speed
Counting Channel: 32 Channels Desiccant Inserter Power: 0.85KW
Cotton Inserter Weight: 180KGS Warranty: 1 Yesr
Capacity: 30-80 Bottles Per Minute Material: Stainless Steel

Easy Operation High Speed Automatic Electronic Capsule Bottling Production Line





Working Principle :

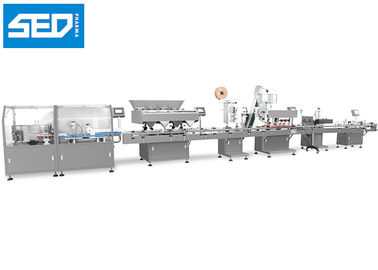

SED-32SX Electronic Pill Counting Line is the production line for tablets,capsules,soft gelatin capsules counting.It consists High speed bottle unscrambler,electronic counting machine,desiccant inserting machine,cotton inserting machine,induction sealing machine,labeling machine,etc.The machines can be modified according to your requirements.



Main Features:

1. Wide applicability. With our original anti-dust technology, it can be used for tablets( including abnormal tablets), capsules, gels( including abnormal gels,transparent gels and opaque gels) pearls and most kind of tabloids.

2. High-intelligentce: intelligent design of each machine with interactive operating multi-language panel. 3. 3. Can save 10~20 kinds of different operating parameters and easy to load for different products. Self-diagnose ,displays errors and make alarms. Well cooperation between each machine and in the whole line.

4. High efficiency. Take purposed to operate, easy to operate, to adjust, to clean and to maintain.

5. Low working cost, low maintain cost. 3 workers will be enough to operate.





Technical Data:

Hopper Volume 60L
Capacity 30-80 bottles/min
Filling Quantity 30-60 pcs/bottle (adjustable)
Bottle Size

Diameter: 30-90mm

Height:40-250mm

Counting Size

Thickness: 3.5-10mm

Diameter: 3.5-15mm

Length: 3.5-30mm

Compressed air 0.5Mpa
Conveyor Belt Length 3000mm
Machine Weight 1000kg
Machine Size L × W × H (mm) 2200 × 1400 × 1680



High Speed Automatic Electronic Capsule Bottling Production Line CE Certified

High Speed Automatic Electronic Capsule Bottling Production Line CE Certified
