Product Details:
|
| Name: | Multi Functional Capsule Counting Machine Electronic Capsule Bottle Counting Line | Bottle Unscrambler Speed: | 10-80 Bottles Per Minute |
|---|---|---|---|
| Counting Channel: | 16 Channels | Desiccant Inserter Power: | 0.9KW |
| Cotton Inserter Weight: | 480kg | Filling Quantity: | 1-9999pcs/bottle (adjustable) |
| Material: | Stainless Steel | Key Word: | Capsule Counting Machine |
| High Light: | electronic pill counter,tablet counting device |
||

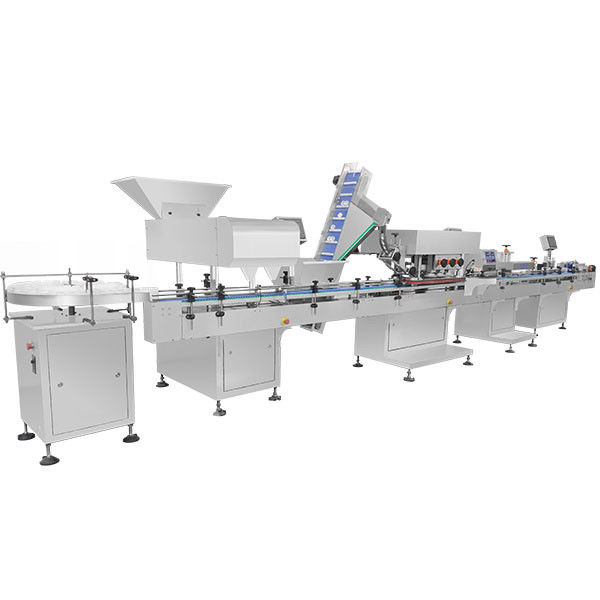

Multi Functional Capsule Counting Machine Electronic Capsule Bottle Counting Line
Technical Data:
| Model name | SED-16S |
| Product name | Automatic counting machine |
| Hopper Volume | 60L |
| Capacity | 10-80bottles/min |
| Filling Quantity | 1-9999pcs/bottle (adjustable) |
| Bottle Size |
Diameter: 30-100mm Height:40-180mm |
| Counting Size |
Pills with diameter of 22mm or less are compatible with 000-5# capsules soft capsules with diameters of 3.5mm-22mm plain tablets special-shaped tablets sugar-coated tablets |
| Compressed air | 0.6Mpa |
|
Power |
220V/50HZ 0.9KW |
| Machine Weight | 480kg |
| Machine Size L × W × H (mm) | 1560 × 1530 × 1700 |
Main Features:
1.Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
2.Vibration blanking: 16-channel vibration uniform blanking, unique turning plate sub-assembly mechanism blanking and discharging uniformly and smoothly, without damaging tablets;
3.Dust resistance system: Adopting our company's high dust resistance photoelectric sensor technology, it can work stably even under high dust conditions;
4.Accurate counting: the photoelectric sensor automatically counts, and the counting error is less than the national standard;
5.High degree of intelligence, with multiple detection alarm control functions such as no bottles no counting, self-checking, etc.;
Working Principle :

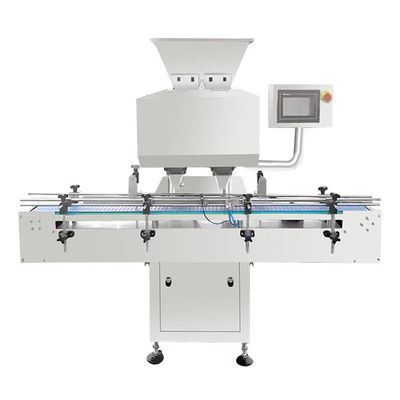

SED-16S Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 16 sets imported counting sensor for counting with 16 guiding way and two heads. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen for easy operation.
