Electronic Soft Gelatin Capsule Counting Machine With Siemens Touch Screen

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-32S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 days after receiving the deposit
Payment Terms: T/T,L/C,Western Union, MoneyGram,Cash
Supply Ability: 30 Sets Per Month
Contact Now

Detail Information

Hopper Volume: 60L Filling Quantity: 15-9999pcs/bottle (adjustable)
Bottle Size: Diameter: 30-90mm Height:40-250mm Compressed Air: 0.5Mpa
Machine Weight: 1000KGS Dimension: 2200 × 1400 × 1680
Machine Speed: 18000-54000 Pcs /min Warranty: 1 Year
High Light:

electronic pill counter


tablet counting device

Product Description

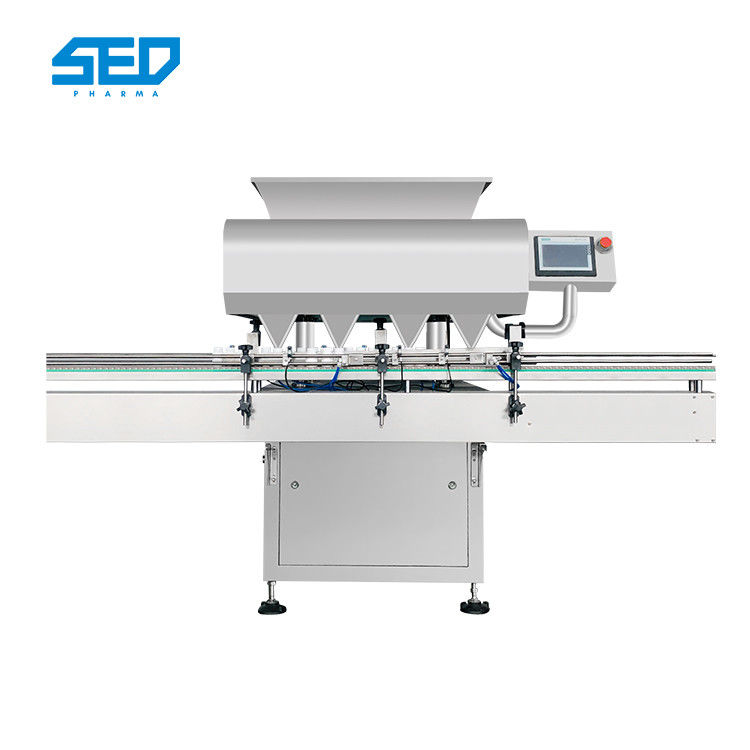

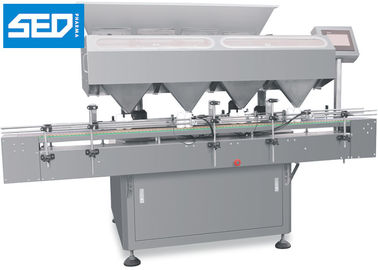

Electronic Tablets Soft Gelatin Capsules Counting Machine With Siemens Touch Screen



Working Principle :

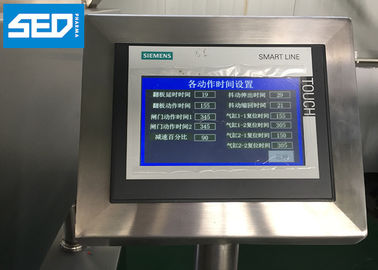

SED-32S Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 32 sets imported counting sensor for counting with 32 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.


Main Features:

1. Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;

2. Vibratory cutting drugs do not damage;

3. A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;

4. Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;

5. To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;


Technical Parameters:


Model Name SED-32S

Filled capsule(00-5#)

Soft Gelatin capsule

chewing gum


other solid object under machine range

Hopper Volume 80L

18000-54000 pcs /min


Filling Quantity 15-9999pcs/bottle (adjustable)
Bottle Size

Diameter: 30-90mm


Counting Size

Thickness: 3.5-10mm

Diameter: 3.5-15mm

Length: 3.5-30mm

Compressed air 0.5Mpa
Conveyor Belt Length 3000mm
Machine Weight 1000kg
Machine Size L × W × H (mm) 2200 × 1400 × 1680



Electronic Soft Gelatin Capsule Counting Machine With Siemens Touch Screen 0

Electronic Soft Gelatin Capsule Counting Machine With Siemens Touch Screen 1
