Product Details:
|

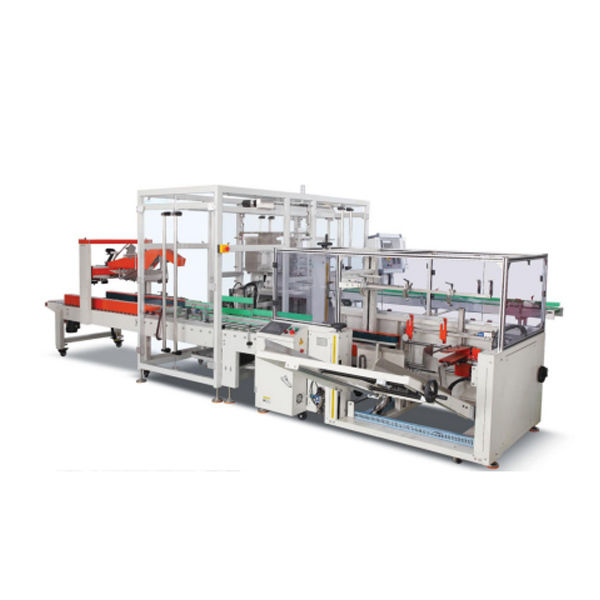

Name: | Automatic Packing Machine Carton Case Packer Box Machine | Warranty: | 1 Year |
---|---|---|---|
Voltage: | 220V/110V | Type: | Multi-Function Packaging Machine |
Highlight: | packaging automation equipment,automatic bagging machine |
Summary:
It can automatically perform functions such as carton opening, bottom folding and bending, bottom tape pasting, and output, which is economical and efficient.
Performance Characteristics:
The entire operation process must be completed in a stable state, with sufficient reliable positioning and protection measures, and must not cause damage or destruction to the cardboard box. Production capacity: 3-15 boxes/minute.
(1) Open the box smoothly and beautifully. Successful unboxing and pass rate ≥ 99.9%.
(2) There is a control screen interface for independent debugging and production control of a single machine, and it has digital and Chinese displays and prompts for output counting, machine operating speed, and equipment failures. There are safety protection functions such as fault alarm, fault shutdown, and emergency shutdown.
(3) The size changes of cardboard boxes can be conveniently and accurately adjusted through a handwheel.
Technical Parameter:
Mechanical dimensions |
L2000mm×W1900mm×H1450mm |
Applicable cardboard box range |
L (600 -200)*W (500 -最小150)*H(350 -100) |
Box capacity |
720 pieces per hour (maximum) |
Stacking amount of cardboard boxes |
100 pieces/hour (corrugated cardboard box) |
Paper box material |
General specification corrugated paper |
Use adhesive tape |
OPP; Kraft paper 38 mm or 50 mm wide |
Box size transformation |
Adjust the handle for about 1 minute |
Power supply |
Single phase 220V
|
Air source |
0.5MPa(5Kg/cm2) |
Air Consumption |
300L/ min |
Mechanical weight |
600Kg |
